Experimental all liquid-metal battery stays liquid at room temperature and Out Performs Li-ion

Andy-Mat

Esteemed Pedelecer
Oct 26, 2018
1,425
278
73
Researchers claim to have developed a new battery that mixes the best of both liquid and solid batteries. The new design is the first all-liquid-metal battery that can operate at room temperature, and it apparently outperforms lithium-ion batteries.

Liquid metal batteries have electrodes made of – you guessed it – liquid metals. These devices are less susceptible to wearing out than solid batteries, since dendrites don’t form and damage the components. Plus, they’re simple to scale up – just add more liquids in bigger tanks.

But there’s one major downside: temperature. In order to keep the metals liquid, most of these batteries need to be heated to at least 240 °C (464 °F). The equipment needed to do that makes the devices bulky and energy-consuming.

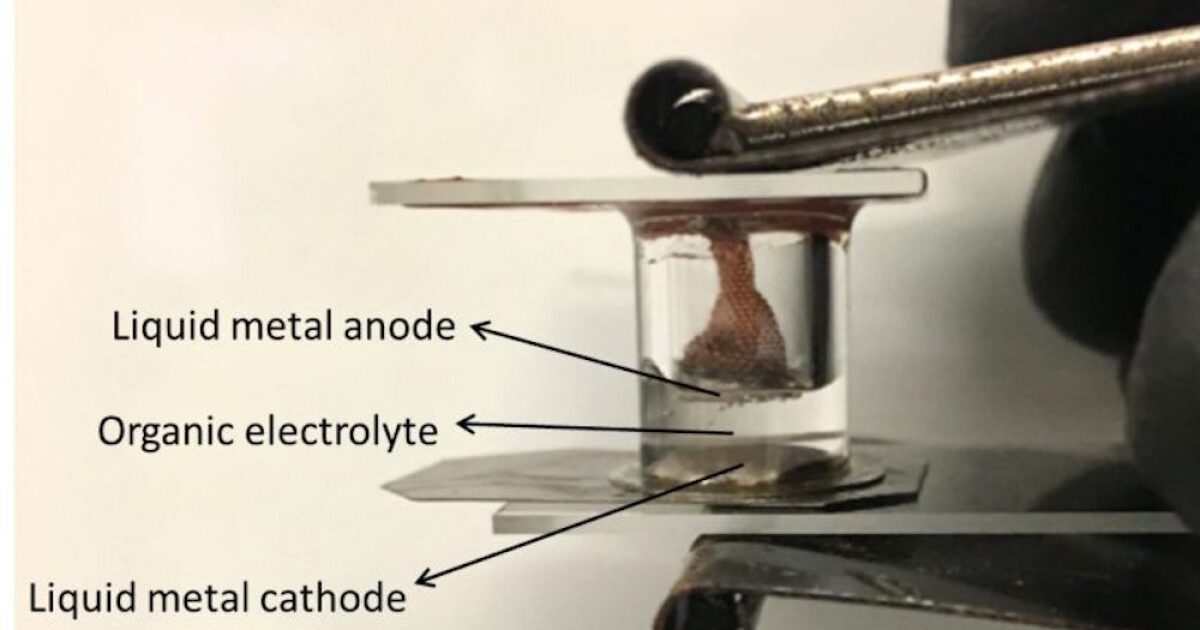

But for the new study, the team investigated alloys that could remain liquid at more useful temperatures. They settled on two that worked well, using a sodium-potassium alloy for the anode, and a gallium-indium alloy for the cathode. These were able to remain liquid at just 20 °C (68 °F), which the team says is the lowest operating temperature for any all-liquid-metal battery.

Full text only on the web link for those interested:-



Andy-Mat

Esteemed Pedelecer
Oct 26, 2018
1,425
278
73
Heard it was being developed for a Bosch crank mounted motor.:)
Nothing wrong with that, I am sure that if it ever gets to market, all e-bikes will eventually get one.
Depending upon the final price of course.....
Also, it sounds to me as also being much safer than Li-ion is, so I know that would welcome it with open arms, just for that.
regards
Andy
