February 3, 201511 yr Due to the increased popularity of our torque arms / torque plates, we are now manufacturing in greater quantities. This means savings for us in unit manufacturing costs. Therefore we are passing this saving on to customers by reducing the retail price of a set from £9.95 to £8.50, this price includes free delivery within the UK. Based the popularity and feedback we receive from customers around the world, we believe they are the best made and best value on the market. They are available for both 12mm and 14mm hub motor axles here on eBay http://www.ebay.co.uk/itm/261733254617?var=&ssPageName=STRK:MESELX:IT&_trksid=p3984.m1555.l2649 12mm axle version 14mm axle version
February 22, 201511 yr the previous set of torque arm sold by you were absolutely not strong enough. It wasn't hardened metal which caused motor axle to spin through the hole over time... has that been corrected now?
February 22, 201511 yr the previous set of torque arm sold by you were absolutely not strong enough. It wasn't hardened metal which caused motor axle to spin through the hole over time... has that been corrected now? Did you use a 12mm axle in a 14mm slot? They will all spin if you do that. I had double 14mm torque arms on a BPM motor, but the axle still turned.
February 22, 201511 yr I'm not sure. I think it was 12mm. I changed since to the ones from bmsbattery and drbass ones and no problem since then
February 22, 201511 yr I think torque arms need hardened steel. Drbass ones are a bit more costly but a real peace in mind
February 22, 201511 yr Even the BMSB ones can't stop the axle from twisting if you put a 12mm axle in the 14mm slot. You would think that the steel would be strong enough to hold it, but it isn't. Both the Cyclezee and BMSB ones are hardened. Try and drill them. You need a 5% cobalt drill.
February 22, 201511 yr Hi cwah, The original torque arms that you bought in March 2012 were not manufactured by us, only available in one size for 14mm axles and quite adequate for 250w motors. The ones that we now sell are manufactured locally by an engineering firm who makes parts for the Mercedes, Red Bull and other F1 teams. They are made from hardened steel are thicker, much stronger, suitable for high powered motors and come in two sizes, for 12mm and 14mm axles. We have sold several hundred sets worldwide and not had any reports of problems. If you send me your address and axle diameter by email to cyclezee@gmail.com I will send a set free of charge. Should any other customer has a problem or concern about the original type, please return them and they will be replaced with our own Cyclezee ones free of charge.
February 23, 201511 yr Hi cwah, The original torque arms that you bought in March 2012 were not manufactured by us, only available in one size for 14mm axles and quite adequate for 250w motors. The ones that we now sell are manufactured locally by an engineering firm who makes parts for the Mercedes, Red Bull and other F1 teams. They are made from hardened steel are thicker, much stronger, suitable for high powered motors and come in two sizes, for 12mm and 14mm axles. We have sold several hundred sets worldwide and not had any reports of problems. If you send me your address and axle diameter by email to cyclezee@gmail.com I will send a set free of charge. Should any other customer has a problem or concern about the original type, please return them and they will be replaced with our own Cyclezee ones free of charge. Yes could you send a replacement one? The previous ones killed my dahon jetstream dropout. I was really really annoyed and changed to drbass one. I think I purchased 2 or 3 sets from you and I ended up putting them all in the bin. But I'd be interested to see if these one can handle the BPM torque. Thank you
February 23, 201511 yr Yes could you send a replacement one? The previous ones killed my dahon jetstream dropout. I was really really annoyed and changed to drbass one. I think I purchased 2 or 3 sets from you and I ended up putting them all in the bin. But I'd be interested to see if these one can handle the BPM torque. Thank you Hi cwah, I have checked my records and I can see that you bought one set in March 2012 and another in set a year ago in February 2014. I don't accept your comment that they "killed" your Dahon dropout. From what I have seen and read your bikes seem to have a habit of breaking. I am happy to send you 2 sets free of charge but as I said earlier I need to know the axle diameter and your delivery address which you can send by email. One last thing, if you were not happy with what you bought why didn't you contact me personally at the time by phone or email?
February 23, 201511 yr Hi cwah, I have checked my records and I can see that you bought one set in March 2012 and another in set a year ago in February 2014. I don't accept your comment that they "killed" your Dahon dropout. From what I have seen and read your bikes seem to have a habit of breaking. I am happy to send you 2 sets free of charge but as I said earlier I need to know the axle diameter and your delivery address which you can send by email. One last thing, if you were not happy with what you bought why didn't you contact me personally at the time by phone or email? Hello, sorry for that. It actually really enlarged the bike dropout and motor did spin on itself which also caused damage to my BPM wiring (still at home as a spare). I didn't have time to repair it but it's in my to do list. I didn't contact you because I couldn't see anything you could do to help. Obviously I wasn't going to order another set and getting refunded on 10 quid was the least of my concern. If you tell me you can help me to repair my damaged BPM it would be another story I'm however also interested in new product that's why I'd like to try a 12mm dropout set, if you are ok with this. I'm going to send you my address via email. Thank you
February 23, 201511 yr Hello, sorry for that. It actually really enlarged the bike dropout and motor did spin on itself which also caused damage to my BPM wiring (still at home as a spare). I didn't have time to repair it but it's in my to do list. I didn't contact you because I couldn't see anything you could do to help. Obviously I wasn't going to order another set and getting refunded on 10 quid was the least of my concern. If you tell me you can help me to repair my damaged BPM it would be another story I'm however also interested in new product that's why I'd like to try a 12mm dropout set, if you are ok with this. I'm going to send you my address via email. Thank you Hi cwah, Enlarging the dropout was asking for trouble, the motor axle should always be a nice snug fit. I am more than happy to send you a couple of 12mm torque arm sets so just send and email to cyclezee@gmail and I will get some in the post.
February 24, 201511 yr I didn't want to enlarge the dropout. The torque arm failed and resulted in enlarged dropout because axle spined inside... I'm sending you the email now
February 24, 201511 yr I didn't want to enlarge the dropout. The torque arm failed and resulted in enlarged dropout because axle spined inside... I'm sending you the email now Hi cwah, I'm sending you 2 x 12mm sets today by 1st class post.
February 24, 201511 yr With one or two exceptions, I'm not overly fond of the attitude of many of the dealers who contribute to this forum. CYCLEZEE, deserves much credit for his customer service and his demeanour on the forum. He must have the patience of a saint and like ajb9, I would certainly not ignore his business if in the market for another EAPC. Tom
February 24, 201511 yr With one or two exceptions, I'm not overly fond of the attitude of many of the dealers who contribute to this forum. CYCLEZEE, deserves much credit for his customer service and his demeanour on the forum. He must have the patience of a saint and like ajb9, I would certainly not ignore his business if in the market for another EAPC. Tom Hi Tom, Thank you for your comments;)

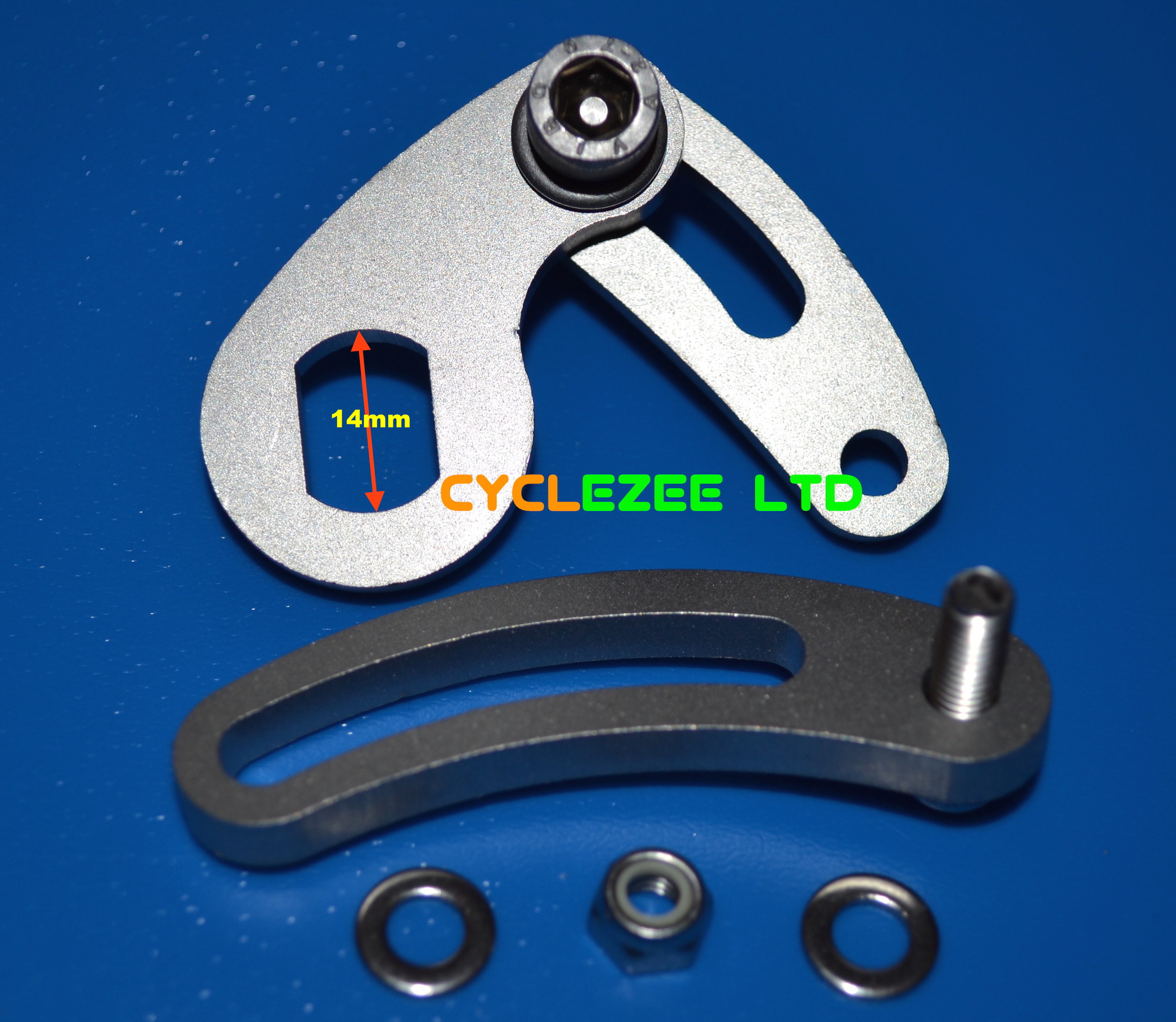

March 18, 201511 yr Now available, Cyclezee V3 Star Torque Arms in 2 sizes for 12 and 14mm diameter axles. They are manufactured in the UK from 4mm thick hard stainless steel. Our star type torque arms allow micro angle adjustment for fitting in a wide variety of situations for front or rear hub motors. The free end of the arm can be secured with a hose clamps or 'P' clips which are readily available in a variety of sizes from good hardware stores or online. They are priced at £12.75 including free delivery within the UK and can be purchased through our eBay listing here http://www.ebay.co.uk/itm/Star-Torque-Arms-Drehmomentstutzen-for-Electric-bikes-e-bikes-Pedelecs-/251882245061? For 12 mm axles For 14 mm axles An example fitted to a rear hub motor
May 3, 201510 yr Hi, I read that on a rear kit, one torque arm only is usually enough for a motor like a Bafang CST HT, which suggests to me that there might be a 'correct' side for it to go on - yet I can't find which side that is. Would you know please? Many thanks, Jonathan
May 3, 201510 yr Hi Jonathan, There is not a right or wrong side to fit a torque arm, just so long as it is fitted properly and prevents axle rotation within the dropouts. Cyclezee have two different types with a 12mm and 14mm version of each as shown below.
May 3, 201510 yr Get one with a 10mm x 12mm slot for your motor. The easiest way to fit it is to tie it to the disc mount unless you have a large flst area at the drop-out, in which case you can drill the frame and screw it directly. To fit it to the disc mount, you have to make your own tie-bar or cut and drill a BMSB one. I try not to use those slotted ones because they could still slip. Think about how you will take the wheel off if you get a puncture. Also, your bike will look ugly with jubilee clips around your frame and scaffolding hanging off your axle. This one had the frame drilled: http://i451.photobucket.com/albums/qq236/d8veh/Allens%20bike/20141021_112827_zps191146d6.jpg This one has a custom tie-bar to the disc mount: http://i451.photobucket.com/albums/qq236/d8veh/rocky%202/20140514_163125_zps75e15a3a.jpg
May 3, 201510 yr I try not to use those slotted ones because they could still slip. Not if they are fitted and tightened properly, the Cyclezee V2 and V3 torque arms have a sand blasted finish for increased friction to prevent prevent slippage. They are manufactured in Milton Keynes by an engineering company that makes parts for McLaren, Red Bull, Mercedes F1 teams et al, we have sold hundreds of these worldwide and the some customers come back for more.
May 3, 201510 yr I would buy them and be happy too. It's just that I like to make sure that they do their job. If you do a Google search, you'll find lots of people have fitted standard torque arms to their bikes and are happy. Luckily the friction from the axle nuts is holding their axle still, but you can see that the torque arm wouldn't resist any turning of the axle. Look at this one. There's no way that small nut and bolt can resist the twisting force of the axle. The force is from left to right. http://i451.photobucket.com/albums/qq236/d8veh/General%20bike/Torque_arm_e-bike_FalconEV.jpg
May 3, 201510 yr Here's the cyclezee V2 mounted to my frame for an oxydrive CST ht... http://images.tapatalk-cdn.com/15/05/03/ad99104b9224b5058ed3d13c5398b7be.jpg Not too unsightly is it?
May 3, 201510 yr Here's the cyclezee V2 mounted to my frame for an oxydrive CST ht... http://images.tapatalk-cdn.com/15/05/03/ad99104b9224b5058ed3d13c5398b7be.jpg Not too unsightly is it? Hmm, nice job Baldylox, guess D8veh won't like it coz it wasn't made for 50p by a blacksmith in a garden shed who has the same facilities as BAE or shipped from the other side of the planet:rolleyes:
