March 10, 20224 yr Hi my bbshd came today and my bottom bracket is just a tiny bit tight for the bbshd to fit in but it does go in but then gets stuck on the other side so I'm thinking to maybe file down a bit of the bottom bracket tomorrow but let me know people on what I should do
March 10, 20224 yr Check the BB shell for any spots of over weld, try and file any bits down being careful not to damage the shell threads.
March 10, 20224 yr Because that's what I was thinking to do so the kit goes it smoothly It should fit all the way, if it goes in part way, because the bb tube is the same size all the way. Much better to find what is stopping it and put that right rather than damage the threads. The main issue with thread damage is that the frame cannot go back to non-electric.
March 10, 20224 yr Author It should fit all the way, if it goes in part way, because the bb tube is the same size all the way. Much better to find what is stopping it and put that right rather than damage the threads. The main issue with thread damage is that the frame cannot go back to non-electric. Let's say I damage the thread will I even use the bb shell thread for the bbshd
March 10, 20224 yr Let's say I damage the thread will I even use the bb shell thread for the bbshd I don't have specific BBSHD knowledge. But looking at the parts, and the installation instructions should answer that. I think the answer is no, and fitting is by clamping using the parts own threads, but check before it's too late!
March 10, 20224 yr could I not just hammer the motor in since the Dremel costs a lot for me Get the biggest coarse round file you can find and try that. A little bit of time now might avoid a lot of trouble later on. Edit: a half round file might be even better as larger radius. And lock that hammer away! Edited March 10, 20224 yr by matthewslack

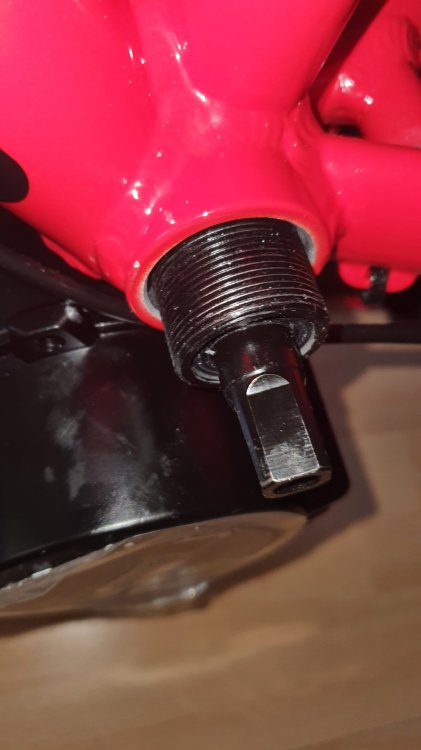

March 10, 20224 yr This is where it stops and doesn't go more in and becomes a bit stiff Measure how deep it is from the bb end surface to the motor casing. Then see how far the motor will go in from the 'wrong' side. If it goes further than that then there must be something deep inside getting in the way. If it doesn't then the inside edge of the thread is the issue. It only needs half a mm or so of a lump to be a problem, so once you find it, a file should shift it quite quickly.
March 11, 20224 yr A clear photo of the BB without the motor fitted will help identify the area that needs filing away.
March 11, 20224 yr A hammer is certainly not the answer. Also a pic of the other side from a top view with the motor inserted as far as it can go.

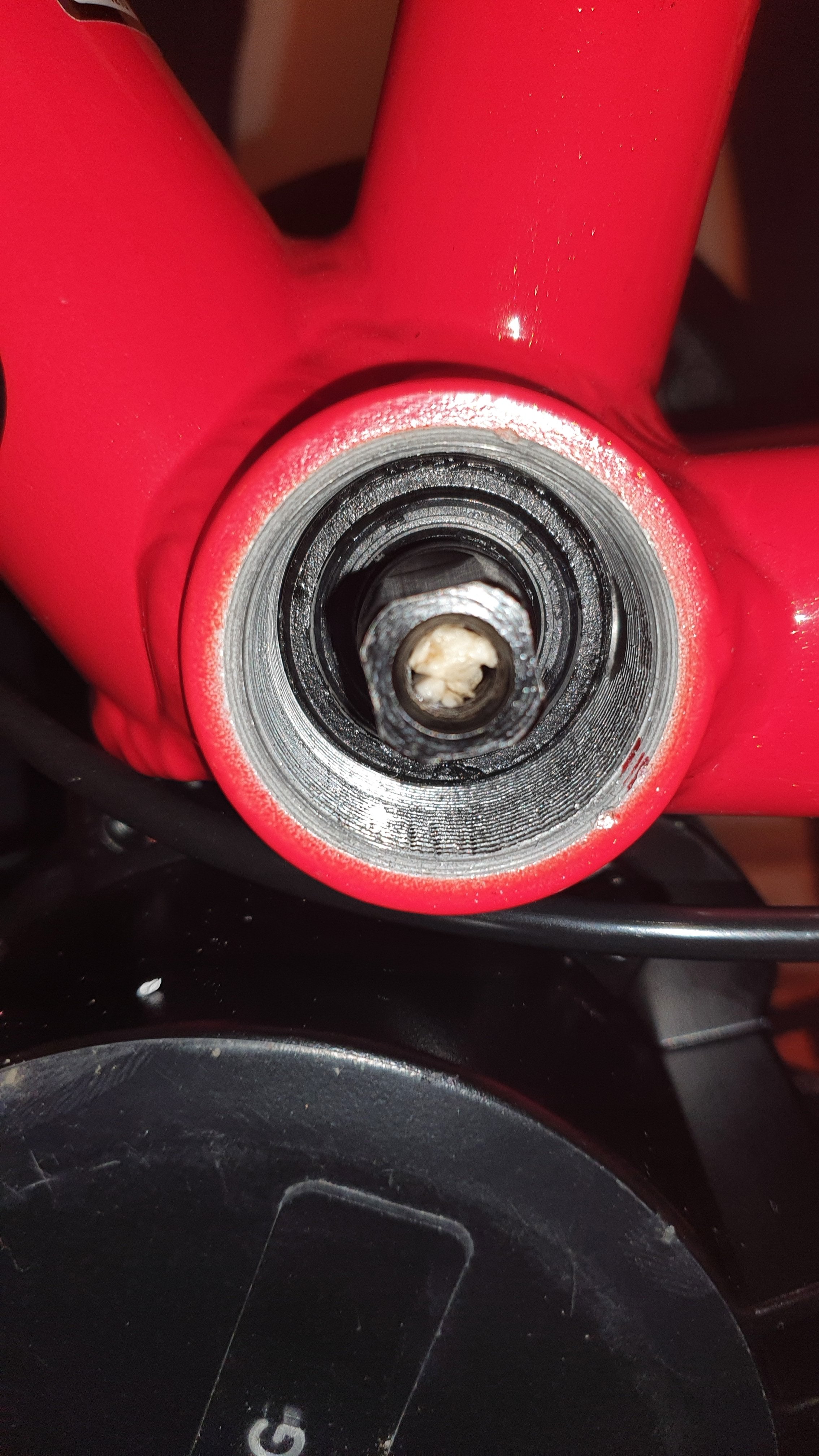

March 11, 20224 yr Author On the 2nd picture the arrows are indicating how much goes it and on the 1st picture is where it gets tight and doesn't budge in more
March 11, 20224 yr Author I'm currently waiting for amazon to drop off the the half round file also put my finger there it feels like a slightly little bump around that area which is probably why it ain't going in
March 11, 20224 yr Author Also my bottom bracket is 33.3mm inside shell but not sure about the middle bit
March 11, 20224 yr There is a ridge in the centre of the BB where the threads meet from each side. Remove this from around the circumference of the tube and your motor will fit without the use of a hammer.
March 11, 20224 yr Author There is a ridge in the centre of the BB where the threads meet from each side. Remove this from around the circumference of the tube and your motor will fit without the use of a hammer. Thanks for the fast reply i really do hope the half round file will do the job
March 11, 20224 yr Thanks for the fast reply i really do hope the half round file will do the job It's aluminium, so quite soft and easy to file.
March 11, 20224 yr Author Hi I got one problem only what chain do I need now ? My old one was 8 speed chain should I get a 10 speed chain
