paulratters

Thanks for the help, got the bike going just need to tweak the settings. Do you know what the p 0-5 settings are? The bike is stuttering a little if I don't pedal any thoughts on that? I know it's not quite right hopefully just the settings. Is there a way I can still use the original horn and light switch. Thanks again Paul

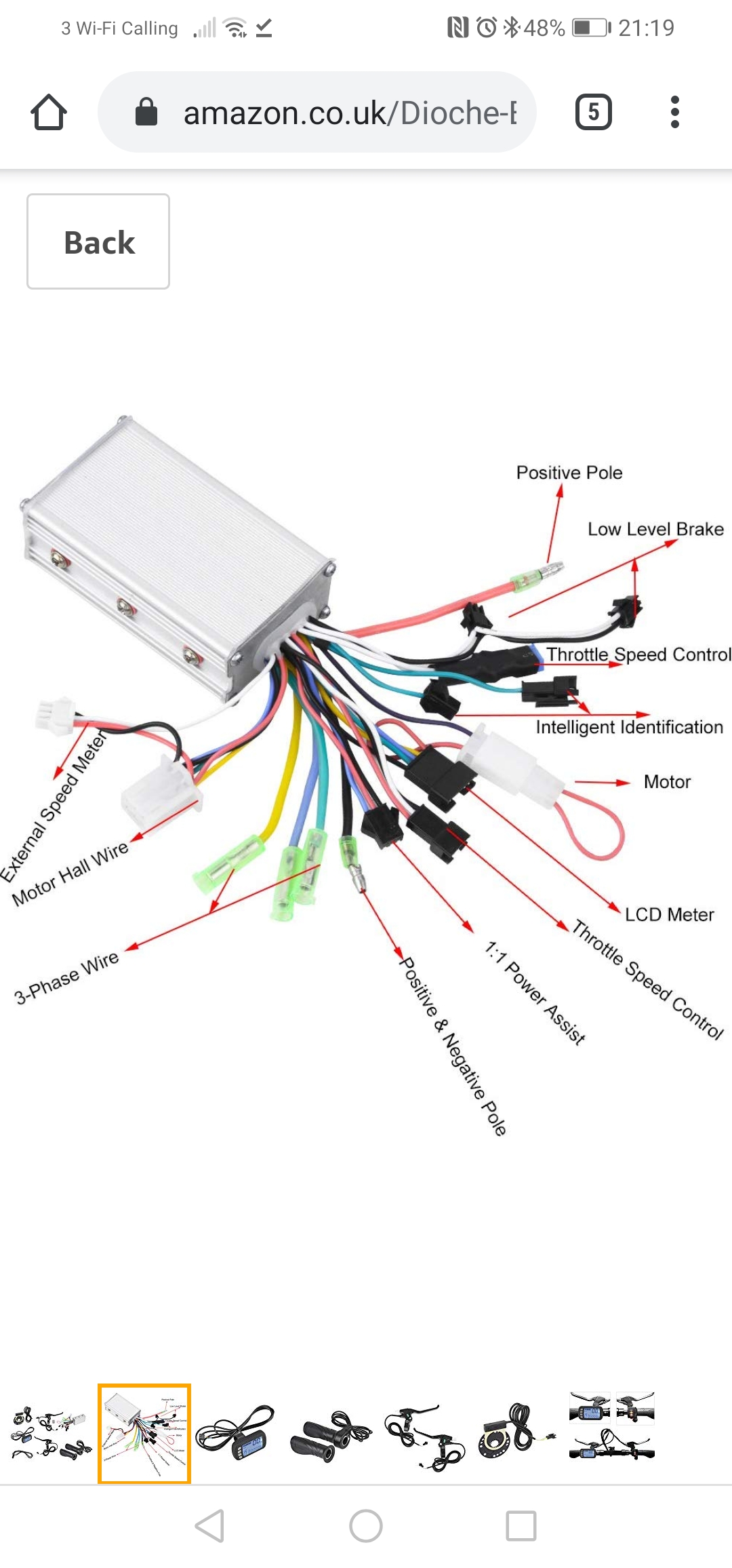

Hi All, I recently killed the original throttle on my Fiido D2 and have bought a brainpower controller LCD and throttle kit. https://www.amazon.co.uk/gp/aw/d/B07MPV259Y?psc=1&ref=ppx_pop_mob_b_asin_title The kit looks pretty simple but I have a couple of questions: 1) can I use the existing stock PAS system or is it best to swap it out? 2) I have a light/horn and a usb on the bike and wondered if I easily get this wired in also? This is the wiring diagram Thanks in advance for any help. Paul

Here is the website for the fiido D2 wiring that shows the connections.. http://www.atorcha.es/doku.php/fiido_d2

Thanks for all the help so far with this, by some miracle I have found a webpage which shows the wiring and have managed this. However, the motor is not working now and I have a flashing battery sign on the LCD? I did manage to make a big spark when I plugged in early but I think that nothing was plugged into the controller? Have I killed my bike?

Thanks a lot Ross, I'll do this shortly

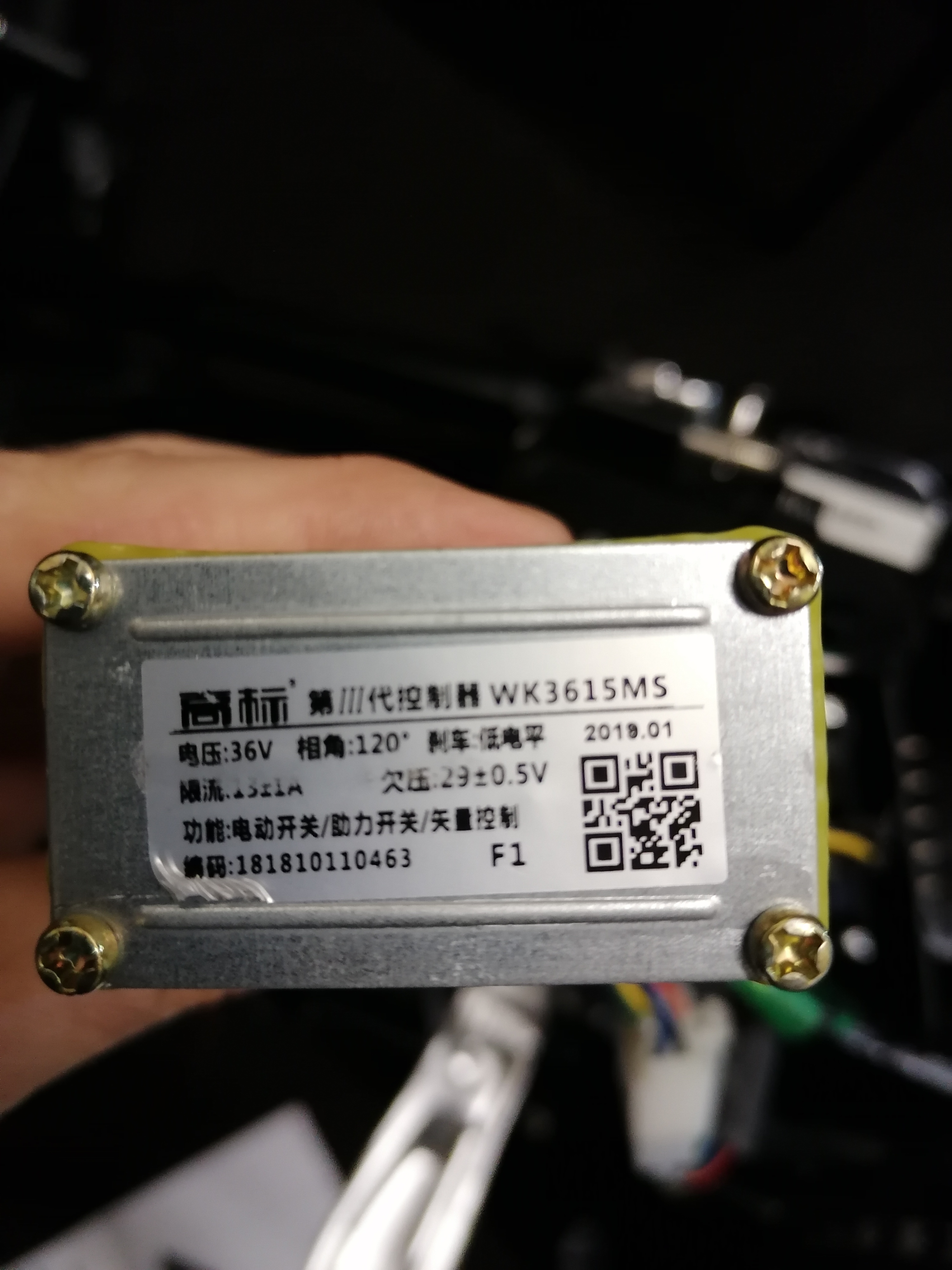

Hi Ross, It's a WK3615MS fiido stock controller. Thanks Paul

Hi Vrf400, Thanks for the info! I have to cable up: Two breaks - yellow black Light on/off + horn + 3 way mode switch Usb charger port PAS Key on/of + throttle I think that's it. I'll take a pic tomorrow of the inside. Thanks again

Hi All, Does anyone have a wiring diagram for a Fiido D2. I have naively disconnected thinking it would be colour coded when taking off the back wheel! I have attached the controller if anyone know anything please let me know. Thanks
