Help! ElectroPed Leader

[PewterRaven]

Hi, I visited the forum last year regarding an ElectroPed Leader.
I have just recently got around to resurrecting the bike! The batteries were tested and found to be of no use.
I have order three replacements, but now have a further problem of no charger.
Has anyone any idea where I could purchase one to fit the connection on the Leader Battery Pack? (Connection shown in photo 4)
I have checked the usual auction sites/sales, but unable to find one.
Any advice would be appreciated
Paul



[Nealh]

3 pin kettle plug style, though the third pin orientation may be wrong.

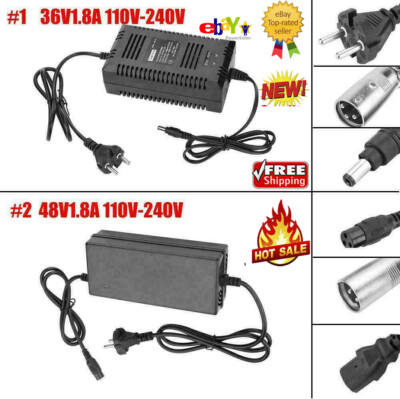

110-240V 36V/48V 1.8A Battery Intelligent Charger for E-Scooter E-Bike EU Plug | eBay

Find many great new & used options and get the best deals for 110-240V 36V/48V 1.8A Battery Intelligent Charger for E-Scooter E-Bike EU Plug at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk



[mike killay]

I think that the three pin kettle plug is not the charging socket but the power out let.
I see a small circular hole on the battery, could we have a close up, because this might be the charging port.



[Andy-Mat]

I think that the three pin kettle plug is not the charging socket but the power out let.
I see a small circular hole on the battery, could we have a close up, because this might be the charging port.

Outlets have sockets, so that nobody gets electrocuted, pins are inputs. This is a mains input plug, as seen on desktop computers power supplies. Also the positioning of which pins are which is a standard, and must be adhered to.
This particular type I have used on Computers for many years, strong and sturdy, a good choice for a Bike as well. Sadly, the type name escapes me at this time, sorry!
See here:-



[MontyPAS]

This particular type I have used on Computers for many years, strong and sturdy, a good choice for a Bike as well. Sadly, the type name escapes me at this time, sorry!
See here:-

IEC Socket



[Nealh]

Just had a look at Pic #1 the IEC type is the discharge lead and it clearly shows the discharge IEC type lead at the top of the seat post.
MK is correct the charge point looks to be a DC 5.5mm x 2.1mm or 2.5mm socket at the bottom of the battery.
There are a few on ebay that should work but make sure it states SLA 36v.



[MontyPAS]

The charger I posted above is for Li batteries, the op will be using 3 x SLA in series so will need the one below, cut the charge pug off and fit an IEC one for compatibility.

DC 36v 1.8a Lead-acid Battery Charger Charging for Electric Bicycle Bike UK for sale online | eBay

Find many great new & used options and get the best deals for DC 36v 1.8a Lead-acid Battery Charger Charging for Electric Bicycle Bike UK at the best online prices at eBay! Free delivery for many products!

www.ebay.co.uk

Personally, I think that the use of an IEC plug / socket to deliver low voltage charge current is a serious design error.
IEC connectors are universally used to supply mains voltage, be it 110 or 230v ac.

The thought inadvertently plugging an IEC lead at mains potential into a LA battery makes me shudder !



[Nealh]

Last night when I looked it was late and I only looked at pic #4 instead of all of them, the charger I posted first with IEC is wrong and is for Li. Any how it will not charge the batteries.
As I mentioned the IEC style connection has one pin orientated differently so a std IEC shouldn't connect.



[Nealh]

The charge point pic #5 (small jack socket) will need the centre pin checking to see if it is 2.1 or 2.5mm. I suspect the latter.
A close up pic would be better to see and identify the type of connector.



[MontyPAS]

The charge point pic #5 (small jack socket) will need the centre pin checking to see if it is 2.1 or 2.5mm. I suspect the latter.

You are right NealH. Looked at pic #1, looks like the IEC plug/socket is being used as the main umbilical connection between motor and battery.

I must try harder and look at all the piccies?



[Nealh]

You are right NealH. Looked at pic #1, looks like the IEC plug/socket is being used as the main umbilical connection between motor and battery.

I must try harder and look at all the piccies?

I did likewise last night and only looked at pic #4 , I read the op's post literally and didn't bother with the others and should have done even though it was getting a bit late.



[vfr400]

Personally, I think that the use of an IEC plug / socket to deliver low voltage charge current is a serious design error.
IEC connectors are universally used to supply mains voltage, be it 110 or 230v ac.

The thought inadvertently plugging an IEC lead at mains potential into a LA battery makes me shudder !

I plugged the mains directly into my lithium battery. Those connectors used to be supplied on the BMSBattery 20Ah block batteries. I hadn't noticed that the lead had become unplugged from my charger, so I just picked it up and plugged it in. There was a big bang and the mains fuse blew, luckily. That must have prevented any damage because when I sorted out the leads and tried again after fixing the fuse, everything was OK.



[MontyPAS]

I plugged the mains directly into my lithium battery. Those connectors used to be supplied on the BMSBattery 20Ah block batteries. I hadn't noticed that the lead had become unplugged from my charger, so I just picked it up and plugged it in. There was a big bang and the mains fuse blew, luckily. That must have prevented any damage because when I sorted out the leads and tried again after fixing the fuse, everything was OK.

Don't think I would like to have tried that
Inadvertently or as an experiment!



[Andy-Mat]

Personally, I think that the use of an IEC plug / socket to deliver low voltage charge current is a serious design error.
IEC connectors are universally used to supply mains voltage, be it 110 or 230v ac.

The thought inadvertently plugging an IEC lead at mains potential into a LA battery makes me shudder !

Well put!
I would even go so far as to say totally illegal where used in any part of the EU and the UK. Probably in America too....
These are mains voltage, AC plugs and sockets.
It would certainly "divert" my attention away from any product misusing such connectors.
I wonder who would be held responsible for any damage or injury caused by accidentally plugging in a mains lead?
Andy



[mike killay]

The 'Kettle' type plug and socket on my Tonaro has the central pin at right angles to normal.
It would not be possible to plug a mains lead into the battery.



[MontyPAS]

The 'Kettle' type plug and socket on my Tonaro has the central pin at right angles to normal.
It would not be possible to plug a mains lead into the battery.

Then it is a C21 IEC plug



[Nealh]

The 'Kettle' type plug and socket on my Tonaro has the central pin at right angles to normal.
It would not be possible to plug a mains lead into the battery.

As in the case of the bike we speak of in this thread, the pin orientation is clear in the pics.



[Nealh]

Then it is a C21 IEC plug View attachment 38253

Not the same IEC connector only the third single pin on the connector is at right angle to the other two.



[MontyPAS]

Not the same IEC connector only the third single pin on the connector is at right angle to the other two.

See it now (Yet again didnt look at the piccies properly ). Ninety degree orientation of what would be the earth pin on a standard IEC connector?



[mike killay]

Tonaro plug and socket.
