Hi,

Inside the battery pack, the red and black wires from the cells/RCA/Phono socket to the LED charging indicator PCB are detached & I need to know to which of the two places they solder - regarding correct polarity - please?

Confusingly, one of the pcb holes connects with the LED cathode - and the other with a diode cathode -ve.

Thanks

Edited August 8, 20169 yr by jkam

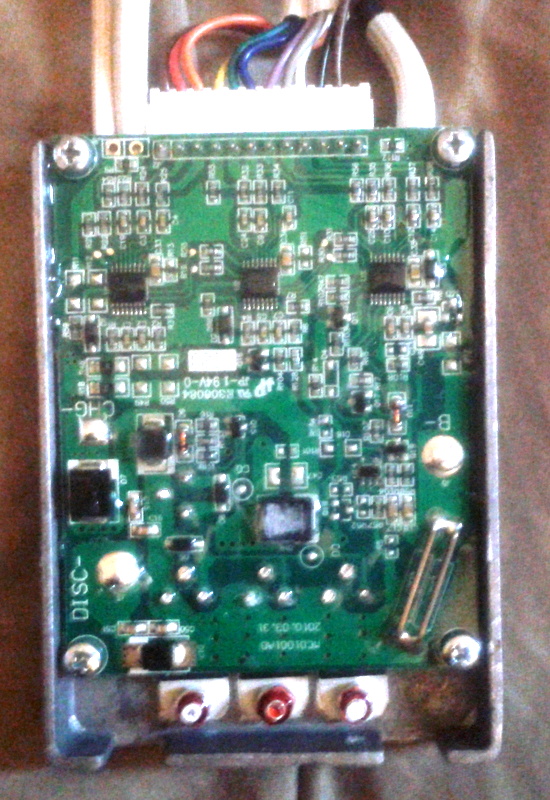

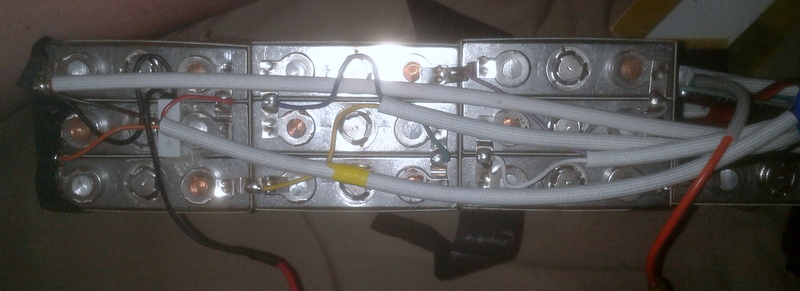

Photos as promised if you need better ones just ask.

Hi,

Thankyou for your time, effort and empathy.

Unfortunately these do not show the small pcc (circuit board) that the charging LED array are mounted - specifically the red and black wire connections.

Kind Regards

Hi,

Thankyou for your time, effort and empathy.

Unfortunately these do not show the small pcc (circuit board) that the charging LED array are mounted - specifically the red and black wire connections.

Kind Regards

Why don't you show a picture of your LED module, then we can tell you how to connect it?

Hi,

I was aware of your kind advice and explained why I have not yet obliged in that I have not yet found time to get to the bike and again dismantle. It is now usable as is - for now.

But hey, if someone kindly offers a photo, would you prefer that I reject that offer?

Is your battery an original Aurora battery, photos are from an original battery which does not have any LED lights. The only led's are on the handlebar power on/off, assist level panel. could you post an image of your battery to help clarify what you have.
