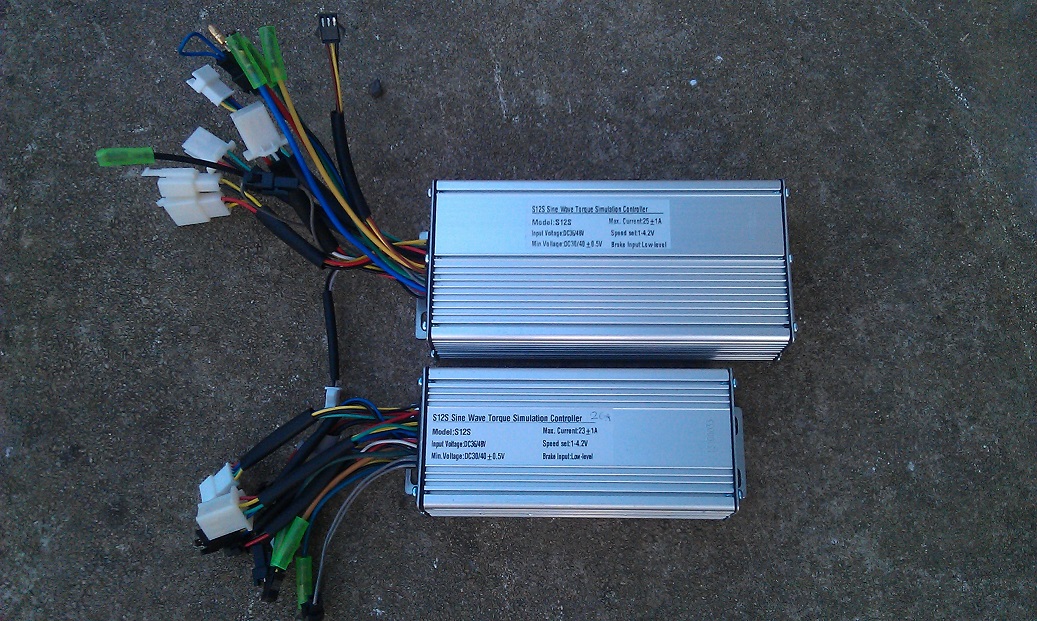

March 13, 201511 yr Recently ordered an LCD3 to try. To top the order up with other bits and forgetting at the time I already had one in the garage I ordered an S12S controller. It came today and it's mahoosive. Now I need a truck size bike to try it on. Any Ideas why the new one would be sooo big? Compare the sizes to the (small?) 26a one I already had. (An S06S is tiny compared to these)
March 13, 201511 yr What's worse is that it's nearly empty inside! Have a look. Reminds me of some of the earlier DVD players on the market. I opened a huge cased player up, to find that it was mostly air inside too. Although, I do think the reasons for the earlier machines being this way, was so that they didn't look too dissimilar from the VHS players. Consumers could be a bit afraid of change in those days. As for your larger controller awol, maybe the larger real estate of the casing will help with heat dissipation. Edited March 13, 201511 yr by Fordulike

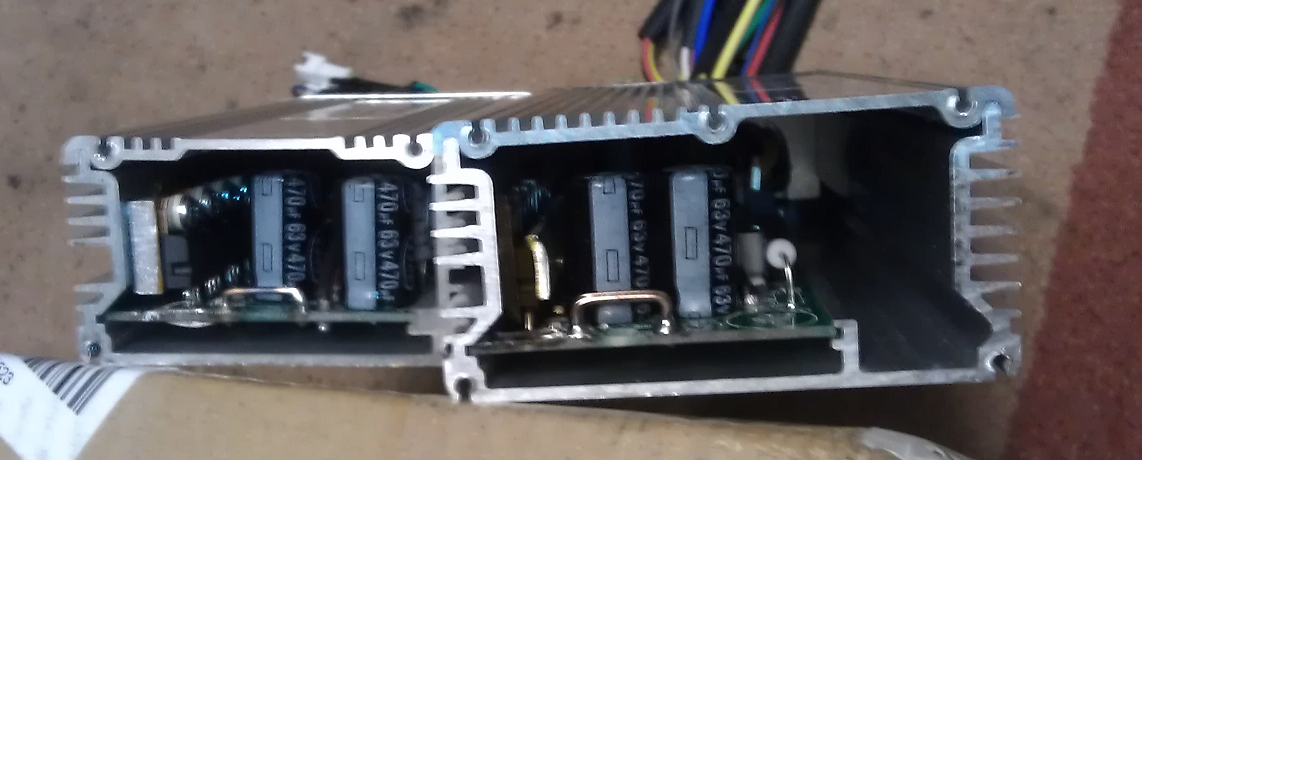

March 13, 201511 yr Author Yep full of air !! For anyone interested here they are opened. They are different though, the new one has 2 shunts and the pcb is about an inch longer. I take it they will still be the same thing and the LCD3 will work with both? No wonder they charged extra shipping, this thing needed it's own plane.
March 13, 201511 yr Author Where did you buy from awol, and I take it an LCD3 is a display console? I got it from BMSbattery and yes the LCD3 is a display console which is mounted in the center of the handlebar with seperate buttons.
March 13, 201511 yr Recently ordered an LCD3 to try. To top the order up with other bits and forgetting at the time I already had one in the garage I ordered an S12S controller. It came today and it's mahoosive. Now I need a truck size bike to try it on. Any Ideas why the new one would be sooo big? Compare the sizes to the (small?) 26a one I already had. (An S06S is tiny compared to these)[ATTACH=full]10780[/ATTACH] Second that,I got same size s12sm from bmsbattery,anyone know where to get mahoosive enclosure for it?
March 14, 201511 yr I haven't looked but surely bmsb sell one ? Sadly not a big enough one,will have to make one I think
March 14, 201511 yr Author As for your larger controller awol, maybe the larger real estate of the casing will help with heat dissipation. Saying that made me think they may have had problems in the past with them overheating so have seperated the hotter parts a bit more also shared the current between 2 shunts and give more air inside and more metal casing for the heat. I've got just the thing to mount it on, nobody will notice it.
March 14, 201511 yr You can have the controller on the outside and the wires on the inside, which is what I did on the one below. Just make some brackets to hold the controller under the crossbar and run the wires into a toolbag or box to keep the connectors waterproof. http://i451.photobucket.com/albums/qq236/d8veh/Allens%20bike/20141111_141558_zps4fac3324.jpg
March 14, 201511 yr You can have the controller on the outside and the wires on the inside, which is what I did on the one below. Just make some brackets to hold the controller under the crossbar and run the wires into a toolbag or box to keep the connectors waterproof. http://i451.photobucket.com/albums/qq236/d8veh/Allens%20bike/20141111_141558_zps4fac3324.jpg thanks, yes, first i thought that's beyond my fabricating skill, then i thought cutting similar battery enclsure with port for s12s in coroplast might be easy, but im sticking it to a raleigh 20, not diamond frame, and want to leave rear rack free for baskets,so a b it stumped for elegant place tohide it all
March 14, 201511 yr Are your brakes going to be good enough for a motor powered by a S12S controller? Normally, they're not enough for pedal power on its own.
March 14, 201511 yr Are your brakes going to be good enough for a motor powered by a S12S controller? Normally, they're not enough for pedal power on its own. Thanks for thinking about it, yes I am replacing front fork with cheap suspension fork to get vbrake mounts,and am using disc brake converter on rear (sadly couldn't get disc brake suspension fork),raleigh 20 brakes is nonexistent in original form,as im sure you know,in semi assembled state I did brief run,tops out around 23 mph which is great for me,so not so much high speed as acceleration which will mean frequent heavy braking
