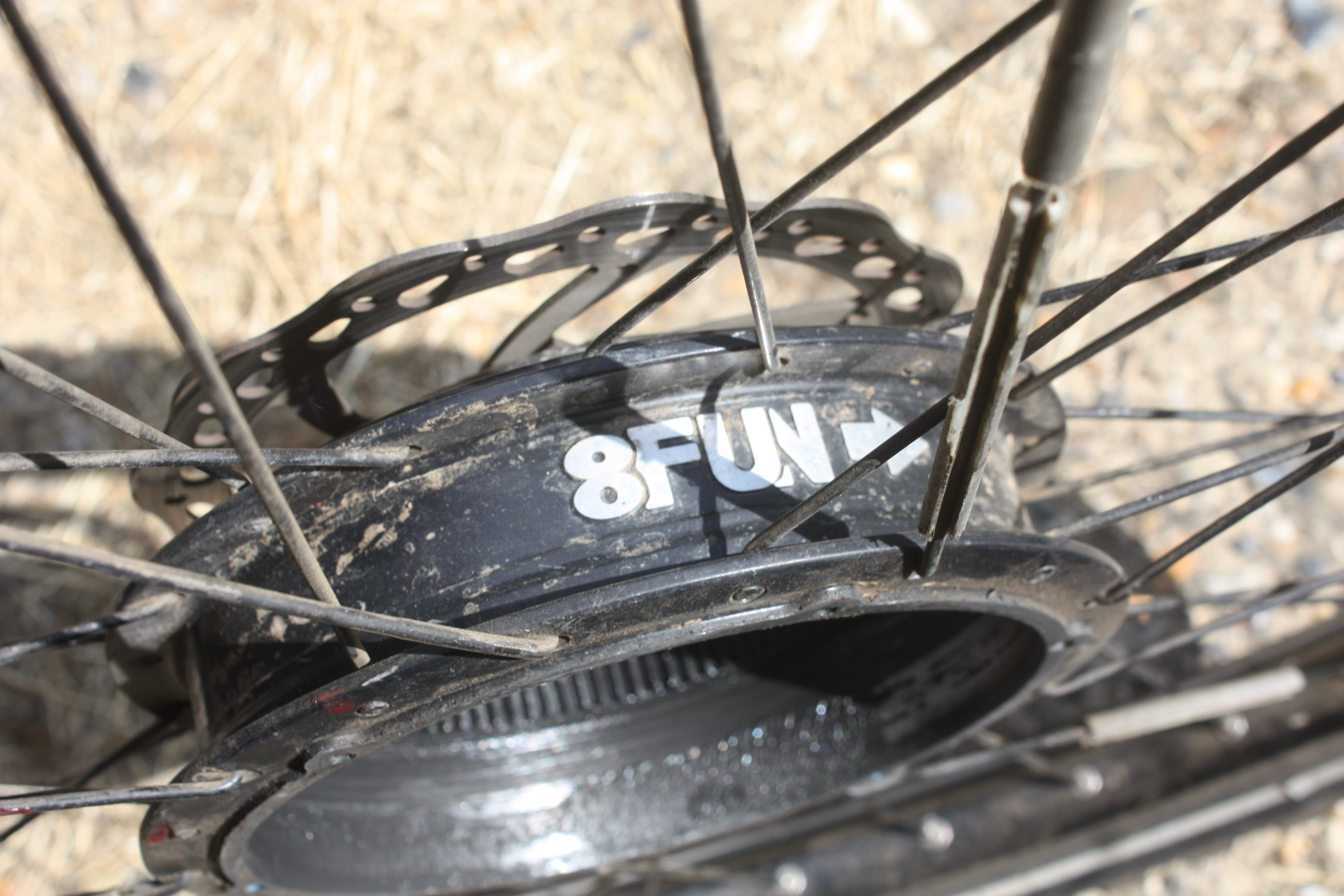

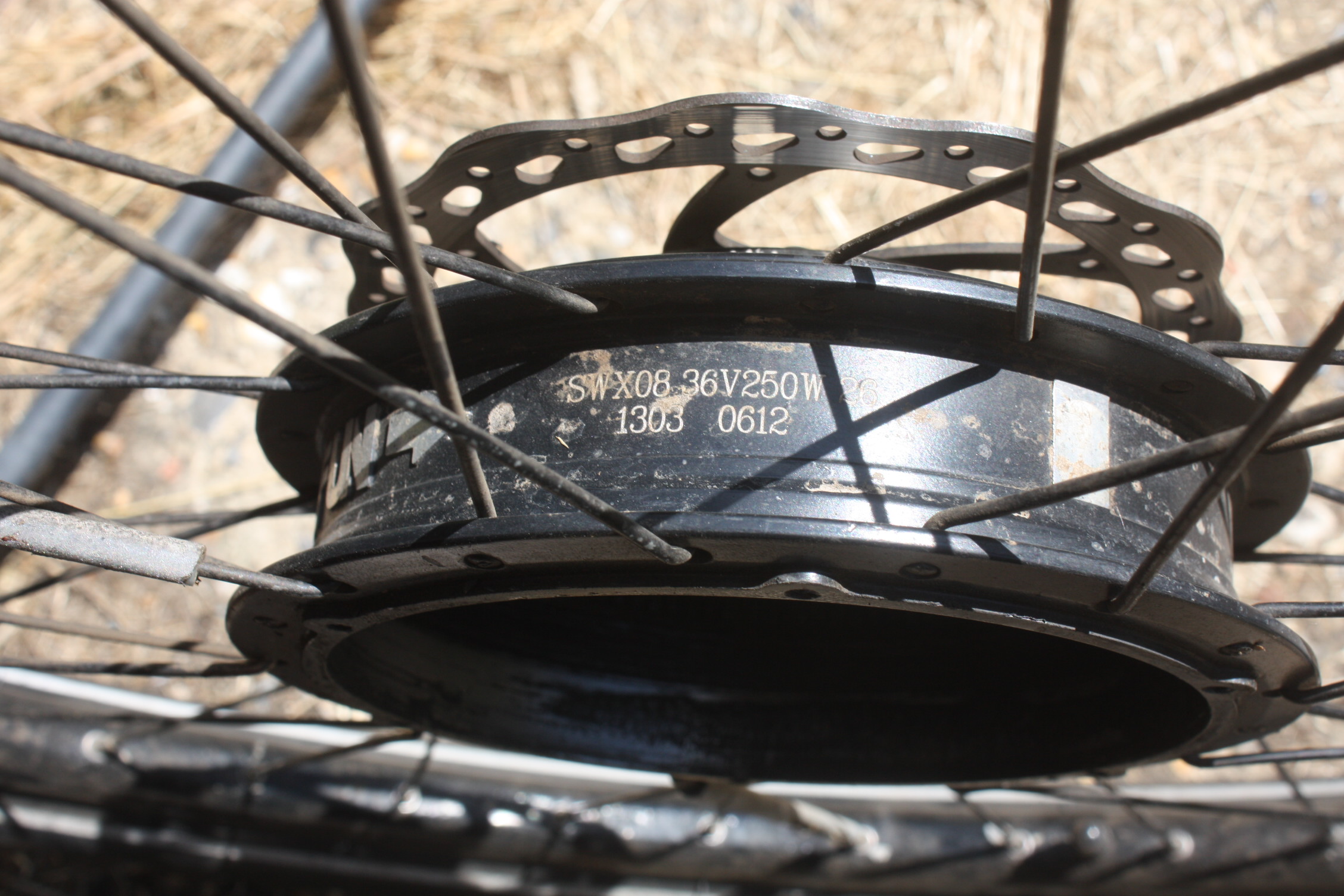

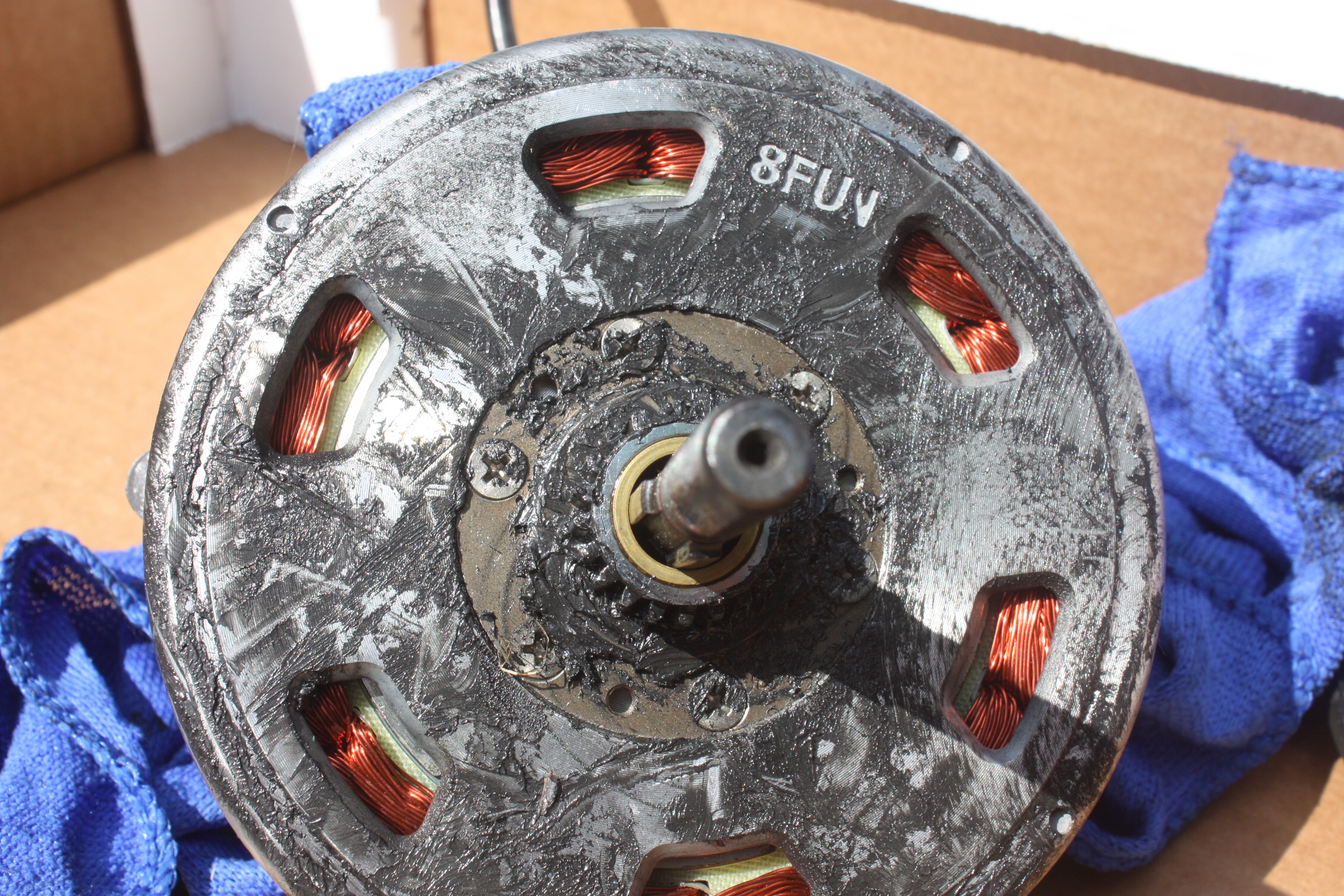

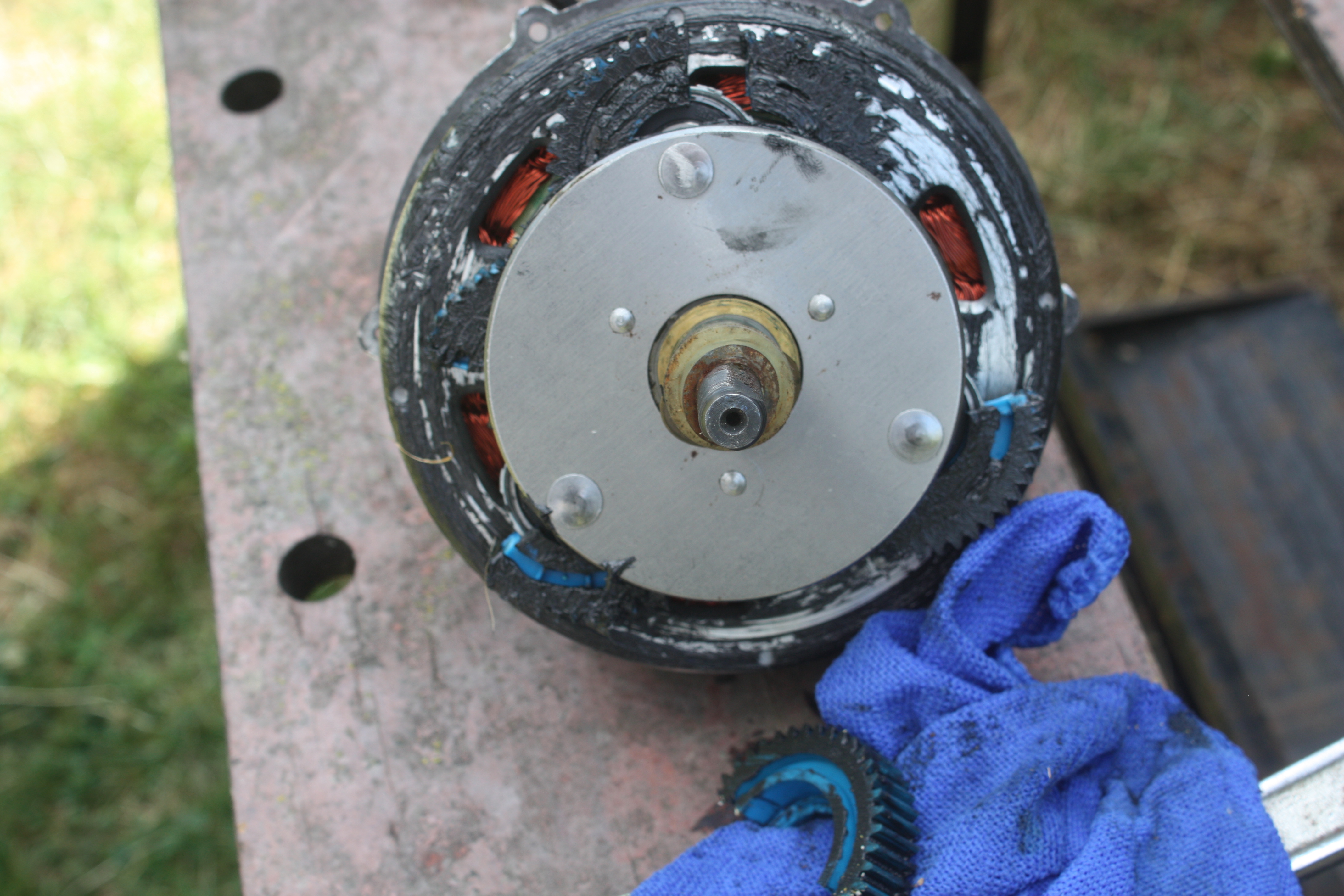

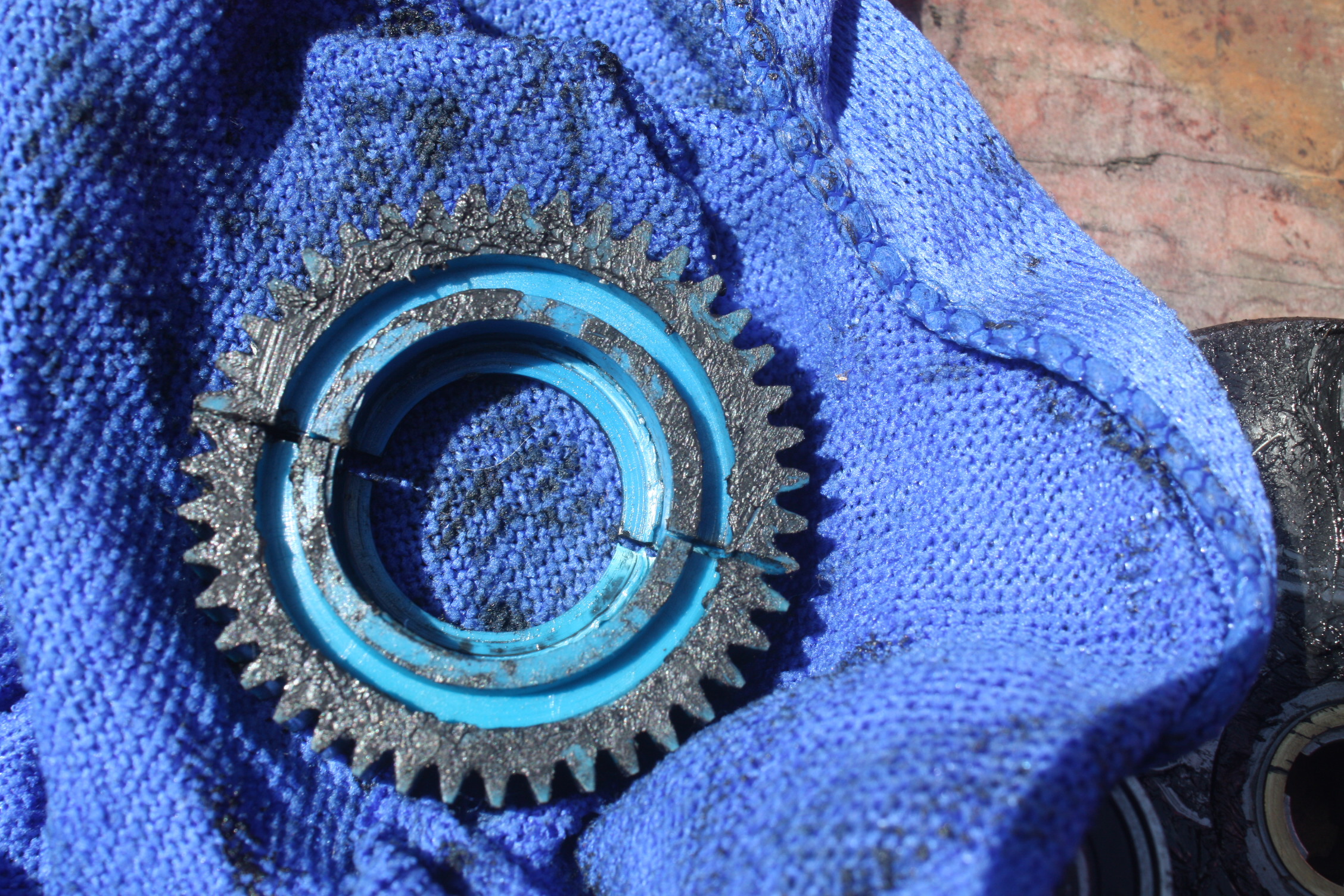

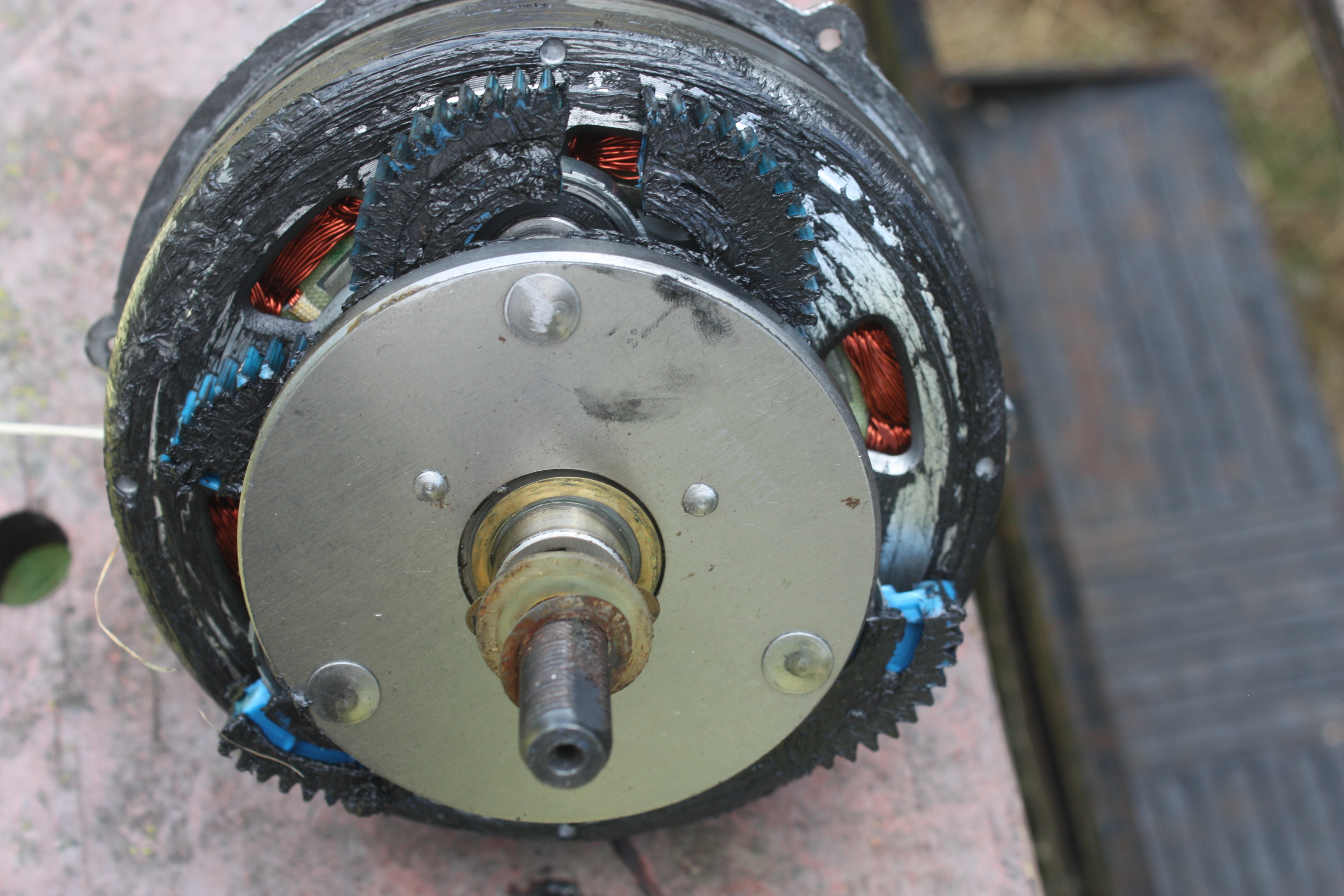

July 3, 2025Jul 3 im not sure about what parts to buy and what i need You have to count the teeth on any one of the blue gears, then pull the whole clutch off with the gears so that you can see whether it has a single keyway or the 4-way spline. You will also need some parafin to clean off the old grease and some lithium grease to regrease it with. It would also help to show the designation markings so that we can see what motor it is rather than the name of the biggest ebike motor manufacturer in the world. What caused it to break like that? You must have hit something pretty hard. Edited July 3, 2025Jul 3 by saneagle
July 3, 2025Jul 3 should the clutch just pull of it seems stuck The last motor (mxus) I dismantled had a circlip under the brass washers that needed removing. Also I needed to use two large screwdrivers to prise off the clutch assembly with a little bit of force. Dont lose the brass washers and pin/woodruff key under the assembly.
July 4, 2025Jul 4 Author What caused it to break like that? You must have hit something pretty hard no i was just riding the bike like i normally do about 8 miles hour the motor was makeing some noises and i just carrying on riding can you please gave me a link where i can buy the gears thanks
July 4, 2025Jul 4 Author i can only find a 36 teeth gears i think my one is 42 teeth is it time for a new wheel
July 4, 2025Jul 4 Bafang BPM & BPM-CST/BFRM-G070 Motor Gear Set 42T for Replacement Bafang BPM & BPM-CST motor gear kit for replacement [bafang BPM & BPM-CST Motor Gear] - $35.00 : Zen Cart!, The Art of E-commerce Bafang hub motor clutch/planetary gear set for Bafang H610, H620, RM G070, 8FUN BPM, 8FUN CST hub motors-greenbikekit.com BBS, ebike batteries, Bafang M620, Bafang M600, Bafang M500, Bafang M510, KT controller with display-GreenBikeKit.com One will have to be 100% it is the correct clutch set fitting your hub as they do vary with the hubs age. There isn't a one that fits all unit as the keyways differ, some hav eone some have two keyways. Edited July 4, 2025Jul 4 by Nealh
July 4, 2025Jul 4 Author my one has 4 keyways im thinking i might as well buy a new wheel woosh is not far away
July 13, 2025Jul 13 Author is there a up side and a down side to the nylon gears when i go to fit the gears
