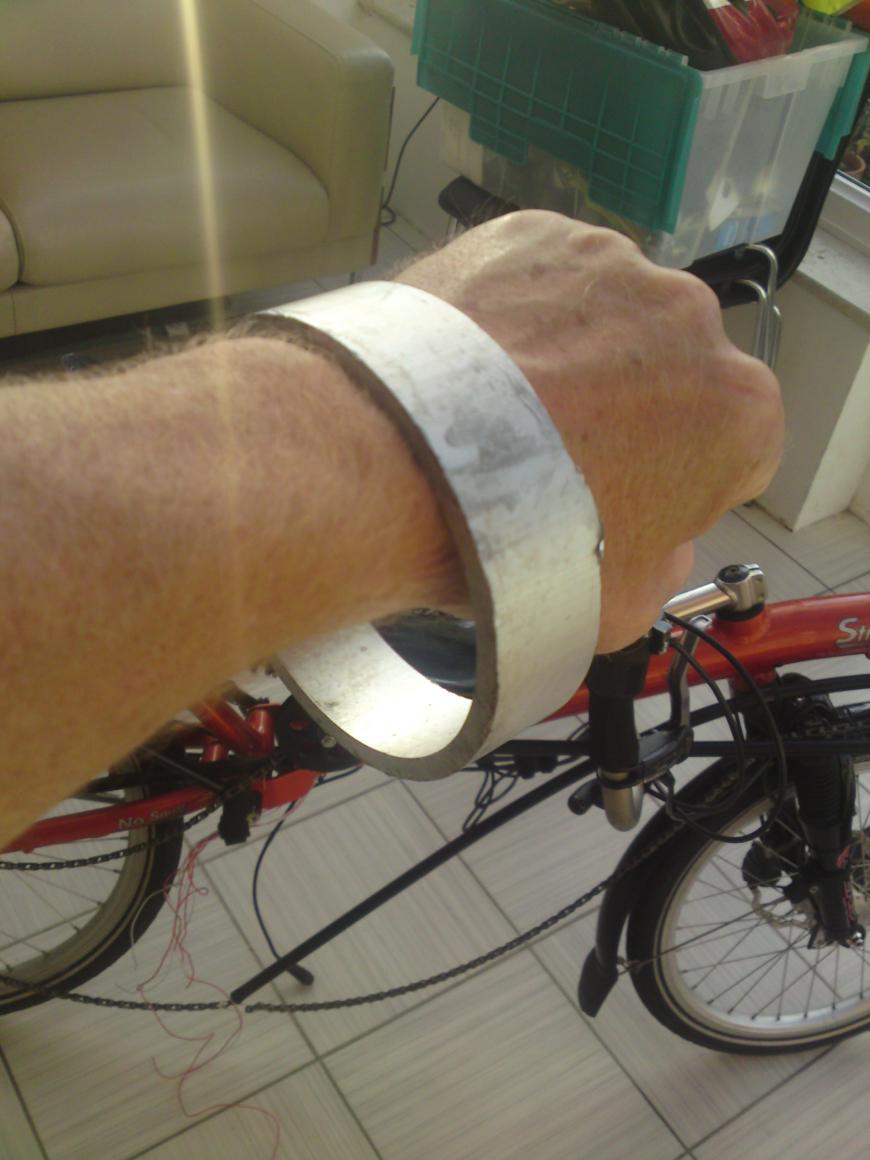

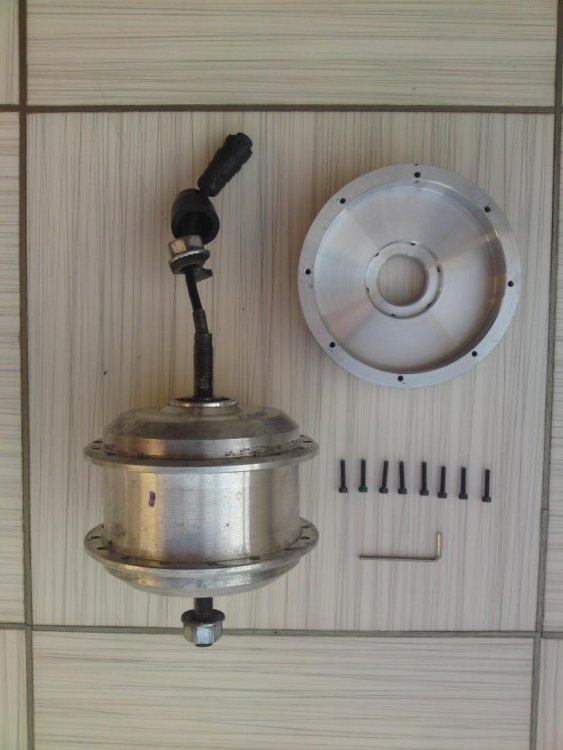

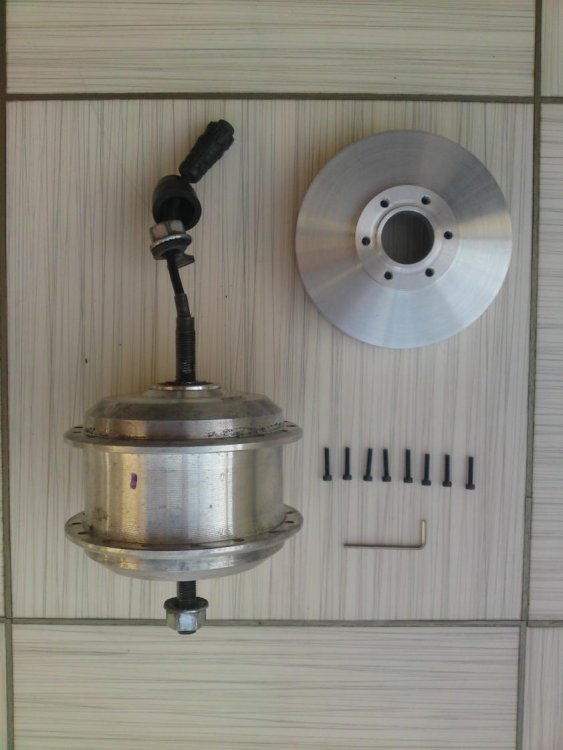

October 6, 201114 yr Author Back to sorting out the hub. I pursued the idea of attaching an aluminium plate to the spoke holes. A company from the midlands sent me a sample of a cross section of Ali pipe having previously said that they did not have the dimensions I wanted. Low and behold the sample fit like glove! ... lol ... I then went about trying to find someone who could finish the piece for me and perhaps tap some holes. At this point I was still thinking it should be a collar with holes either end. I met Graham from a local engineering company and while I explained what I wanted he talked me into making it for me! ... So ,, well ,, I let him! ... I pick up my "collar" today and here it i: Here are the pics: [ATTACH]2759.vB[/ATTACH] [ATTACH]2757.vB[/ATTACH] [ATTACH]2758.vB[/ATTACH] [ATTACH]2762.vB[/ATTACH] [ATTACH]2760.vB[/ATTACH] [ATTACH]2761.vB[/ATTACH]
October 7, 201114 yr Author well I've had better days! ... Had to sort out a few issues with the HAC. The bolts holding the sprocket had those 5mm allen key heads and rendered 5mm of axel unusable! .. Went to alton tool and bolt and got some button heads but had to hack saw them to the length I wanted ... got back 3mm. Tim at another engineering place suggest that I could countersink the sprocket holes and win back some more.. Will do that if I need to .... My fork plate template is a bit springy so I decided to get some 3mm mild steel to make a better one. Decided to take the car to save time and got rear ended on the Sainsbury roundabout! ... ffs ... couldn't believe it ...I hardly ever drive and when I do .... anyway, kept my cool, got Dave from Kwik Fit to have a look and see if I could still drive it and he gave it a thwack with his crowbar and I managed to limp home.. not to be put off I then cycled to get my metal .. when I got back did all the insurance admin ... inbetween managed to work on my new fork plate but am now totally knackered ... hope to fire up the tonqxin tomorrow! ... all being well ..
October 9, 201114 yr Author Having trouble getting the pedelec sensor to sense. On the Connondale the sensor cable was about 6 inches. On the Street Machine its nearly 6 foot! ... I've terminal blocked it. Can I connect the wires to each other such that the controller will think the pedals are rotating? ... going to phone around and see if anyone has a multimeter and knows how to use it! ... Any advice would be great as I would at least like to hear the motor spinning around today! ....
October 9, 201114 yr Can I connect the wires to each other such that the controller will think the pedals are rotating? ... g. No, unless you have something special. I'm assuming that you've got the disk with about 6 magnets in and a sensor that's fixed to a steel ring that fixes on the bottom bracket. There should be three wires: red, black and ano - normally green, yellow or white. The red and the black should have 5v between them. The signal wire has 0 or 5v depending on the position of the crank: As each magnet goes past the sensor it goes on and off, so the controller is looking for the pulses. It only works in one direction, so, if it doesn't work, try turning the magnet disk over and/or turning the pedals backwards. Also, on the controller, next to the thick black and red power wires is a thin red, pink or orange wire that has to be connected to the battery voltage for the controller to work.
October 9, 201114 yr Author Thanks d8veh. I'm pretty sure I had it the wrong way round! ... and .. umm ,, I haven't installed the magnets! ... I checked the electrics by using the crank on the old bike and the sensor and cables are fine! .. The motor was spinning! ... at last! ..... re: the magnets.. can I use any old magnets? i.,e bike computer magnets? fridge magnets? .. If I need to de-install them from this sprocket can you help me identify them! [ATTACH]2766.vB[/ATTACH] Thanks... Edited October 9, 201114 yr by kitchenman
October 9, 201114 yr re: the magnets.. can I use any old magnets? i.,e bike computer magnets? fridge magnets? .. If I need to de-install them from this sprocket can you help me identify them! [ATTACH]2766[/ATTACH] Thanks... I have a nice fridge magnet you could get Alan.......it says '' EAT LESS......lose weight......DONT DRINK........Die anyway !''.........That could add a certain something special to your bike :) Lynda
October 9, 201114 yr Author I have a nice fridge magnet you could get Alan.......it says '' EAT LESS......lose weight......DONT DRINK........Die anyway !''.........That could add a certain something special to your bike :) Lynda Talking of which .... when I was thinking about making an aluminium collar I had ANOTHER fantastic idea ... bike jewelry. This is jewelry for your bike not for you. I thought it was such a great idea that I contacted Jane Adam who makes jewelry out of aluminium for people. She was very supportive ... well, she bothered to reply to me! ... Jane Adam - Jewellery
October 9, 201114 yr You certainly arent short of ideas Alan..... I think thats a great one actually....jewellery for bikes.....hmmmmm.....any excuse to buy some more jewellery.....I am going to have a think on that one....could be a whole new sideline for me......... I also love those lovely brightly coloured crocheted rear wheel skirt guard things.....if I could just remember where I saw them....but anyway I think I might knit one for my bike..... Will post a link if/when I find them Lynda
October 9, 201114 yr Author You certainly arent short of ideas Alan..... I think thats a great one actually....jewellery for bikes.....hmmmmm.....any excuse to buy some more jewellery.....I am going to have a think on that one....could be a whole new sideline for me......... I also love those lovely brightly coloured crocheted rear wheel skirt guard things.....if I could just remember where I saw them....but anyway I think I might knit one for my bike..... Will post a link if/when I find them Lynda Yes. fatboytrig has got a skirt guard on his Tailwind ...I'd like to see something knitted for a bike. May encourage Louise to knit something .. although she has just started to make a rug for the front room which is going to take a while ..The first square of the rug is featured in one of the photos of my motor earlier in the thread. Did you spot it?
October 9, 201114 yr OMG......lying your motor on Louise's KNITTING .......her new knitting.......you really ARE bad Alan ! Tell Louise to get herself some 24mm knitting needles and multi strand yarn.....then she can knit a lovely thick rug in an evening.........I can sell her the kit Or failing that, get the needles and cut up some sheets or blankets ...if she wants to give it a try tell her to p/m me and I can tell her how best to do it. Lynda
October 9, 201114 yr Author OMG......lying your motor on Louise's KNITTING .......her new knitting.......you really ARE bad Alan ! Tell Louise to get herself some 24mm knitting needles and multi strand yarn.....then she can knit a lovely thick rug in an evening.........I can sell her the kit Or failing that, get the needles and cut up some sheets or blankets ...if she wants to give it a try tell her to p/m me and I can tell her how best to do it. Lynda Thanks for the offer. I'll tell her when she gets off shift. All I know is that she is using a "log cabin" method which she read about in ... a mason and dixon knitting book ... she's selected the wool from her stash and its sitting in the corner of the front room thus: [ATTACH]2767.vB[/ATTACH] sorry about being out of focus ...
October 9, 201114 yr Author Here is the preparation I did prior to the initial test of the motor: unfortunately my preparation did not include pedelec sensor magnets!
October 10, 201114 yr Author No, unless you have something special. I'm assuming that you've got the disk with about 6 magnets in and a sensor that's fixed to a steel ring that fixes on the bottom bracket. I looked at my other bike that does indeed have 6 magnets installed in the sprocket. Do these magnets have a thread? i.e Are they normally screwed in? ... On the bike I am converting there are only 2 magnets in the sprocket and even though they have a allen key head when I tried to remove one there was a "snap" and then nothing - just a lot of turning! ....
October 10, 201114 yr I looked at my other bike that does indeed have 6 magnets installed in the sprocket. Do these magnets have a thread? i.e Are they normally screwed in? ... On the bike I am converting there are only 2 magnets in the sprocket and even though they have a allen key head when I tried to remove one there was a "snap" and then nothing - just a lot of turning! .... We need a decent photo of what you've got - the sensor and the magnets. What you're saying doesn't make sense to me. The Chaimwheel that you showed didn't appear to have any magnets. Normally they'd be on the other side anyway. This is what a normal pedal sensor looks like: PAS--Pulse Padel Assistant Sensor - BMSBATTERY The magnets are glued/cast into the plastic disc where you can see the 6 lumps. From the other side you'd see 6 shiny discs. You can buy magnets like that on Ebay and just use their magnetism to stick them to the chainwheel, but they need to be close enough to the sensor and the right way up.
October 10, 201114 yr Author These pics are of the Spirit that I rode in today: [ATTACH]2771.vB[/ATTACH] [ATTACH]2772.vB[/ATTACH] Looks like Cytronex use the chainwheel mounting holes and implant the magnets. This one has 6. The bike that I am converting has similar implants but only has 2 magnets.
October 10, 201114 yr Normally the chainwheel bolts are in two parts. One has a hex hole and the other a slot. You have to hold the back one (slotted) with a screwdriver while you turn the front with a hex key. It sound like you've loosened yours: Try holding the back still with some pliers while you unscrew the front if it doesn't have a slot. CHAIN WHEEL RING BOLTS PURPLE MOUNTAIN BIKE TREK FISHER | eBay Those ones in the photo are something special. I've never seen those before. It's possible that they've found a magnet that just fits in the hole or it might be glued in. Try tapping it out with a thin rod and a small hammer. Be careful because these magnets are not very strong. Once you've got the size, you should be able to buy some on Ebay for next to nothing 100 Disc Neodymium 3 mm X 1.5 mm Rare Earth N35 Magnets | eBay
October 10, 201114 yr Author and here they are: [ATTACH]2773.vB[/ATTACH] I tapped them out as advised and then proceeded to nearly loose them twice! ... then when I realised what I was dealing with I went about handling a bit like I imagine nuclear engineers handle uranium. So, just to confirm, my old CX700 only had 2 magnets in the chainwheel. I have now removed them and "installed" them in my new chainwheel and the sensor now works as expected! .... When I tried to remove these magnets initially there was a loud snap sound. So, I suspect they were glued ... So, can you recommend some glue so I can install then properly on my new bike? Can I use araldite do you think? Note. I installed them such that they repel the magnet in the sensor. Edited October 10, 201114 yr by kitchenman
October 10, 201114 yr Yes, you can glue them with Araldite or other epoxy. Before you glue them, check everything's working and then mark the front face of the magnet with Tipex or permanent marker so that you glue them in the right way round. I'm looking forward to the finished project.
October 10, 201114 yr Author Yes...me too! ...can't wait to start riding it ... thanks for the tip regarding marking the magnets. I was wondering how to reduce the risk of getting this wrong. ... there is also a high risk of me losing at least one of them for a third time! ... all being well I should be attaching the chain this weekend!
October 11, 201114 yr Author Measured one just in case I have to order some more! .. 5mm diameter 5.2mm Long borrowed some araldite from work must remember not to stick myself to anything!
October 16, 201114 yr Author Ok,.. getting closer ... on the verge ... just need one more inspired thought! ... (putting the coffee on!)
October 17, 201114 yr Author Ok. Decided to stop messing about with bits off the old rear deraillieur. Went to the lbs and bought this for a tenner: [ATTACH]2792.vB[/ATTACH] Should work alot better!
October 23, 201114 yr Author Just done nearly 6 miles around my town. Only issue was left pedal coming loose. Otherwise everything is working as expected. Its a little odd not being able to freewheel but for now I would say I'm good to go and will be starting to commute on Tuesday. I'll do a video tour of the bike as it is now so you can what I have done.
October 23, 201114 yr Ok,.. getting closer ... on the verge ... just need one more inspired thought! ... (putting the coffee on!) ay caramba! I would be tempted to (just for effect) take my feet off the pedals while riding along just to see people's reactions
