November 4, 201114 yr Author Thanks. I really need to sort out the chainline. Come up with a proper method for checking if its right or not ... Regarding the issue with the motor not generating 36volts. Its been suggested to me that as its not in a wheel it never will which I tend to think is probably true. Do you think? Moved the motor over a bit and fitted a new chainwheel which has not broken so far! ... Here is a photo with a line drawn on it to show my current chainline which is still not quite right. Will be moving the motor again in the direction of the arrow: [ATTACH]2889.vB[/ATTACH]
November 7, 201114 yr Author Used one of Louise's knitting blocking wires which shows just how far I was out:

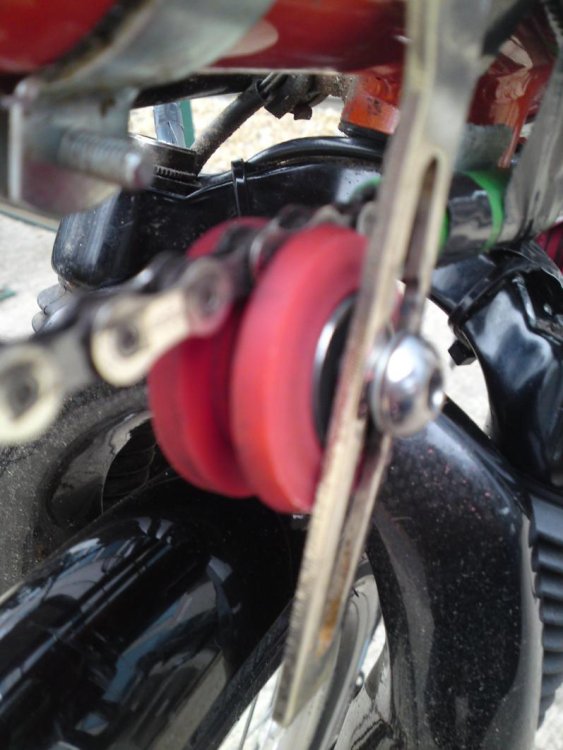

November 7, 201114 yr Author Having moved the motor the chainline is much improved. However, my chainwheel installation leaves much to be desired. Cycled to work this morning shaving off the red wheel plastic from my chainwheels. I wondered what that nosie was! ... [ATTACH]2899.vB[/ATTACH] [ATTACH]2900.vB[/ATTACH]
November 7, 201114 yr Author A challenging project for sure. Keep at it you will get there Regards Jerry Thanks for the encouragement Jerry. I most admit I did get to quite a low point this weekend when I realised that by moving the motor the HAC (hub adapter collar) was touching the frame! ... Out with the file again! ... and then the controller had to be moved! ...... Louise asking why the bike was in the kitchen again and how long is it going to take? .... to which I replied with a stoney silence ... anyway, thats what its all about .. ups and downs... on an up at the moment and looking forward to the ride home ...
November 7, 201114 yr Alan take heart, my EBrompton was quite a challenge especially as I had never built a wheel before. When I got the wrong motor all the way from China with a roller brake fitting, I felt like chucking it all in. I was very down at that point too Then I worked out how to take the motor apart and adapt it I learnt so much as are you and it will put you on good ground for your next project! Regards Jerry Edited November 7, 201114 yr by jerrysimon

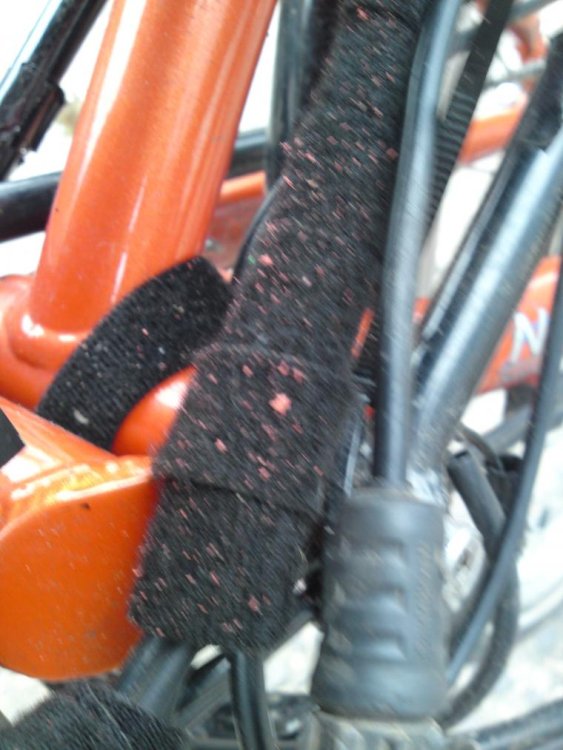

November 7, 201114 yr Author Ok... next mistake ... next challange ... The section of hose pipe that was protecting the front forks AND the brake cable that is cable tied to it failed ... I cycled home without that protection and have now punctured my magura marta disc front brake cable. I know its punctured because royal blue fluid went everywhere and when you try to brake there is nothing there! ... If found some utube vids on bleeding etc ... but nothing on cable suppliers ... Does anyone know where I can get some cable? Is my lbs likely to stock this? ... Obviously I'll find out tomorrow but it would be good to know ... also, any tips from members who are experienced with these breaks ...
November 7, 201114 yr Ok... next mistake ... next challange ... The section of hose pipe that was protecting the front forks AND the brake cable that is cable tied to it failed ... I cycled home without that protection and have now punctured my magura marta disc front brake cable. I know its punctured because royal blue fluid went everywhere and when you try to brake there is nothing there! ... If found some utube vids on bleeding etc ... but nothing on cable suppliers ... Does anyone know where I can get some cable? Is my lbs likely to stock this? ... Obviously I'll find out tomorrow but it would be good to know ... also, any tips from members who are experienced with these breaks ... You need to help a few more old ladies accross the road! Stainless Steel Braided Hydraulic Disc Brake Hose 85cm | eBay
November 7, 201114 yr Author thanks d8veh. Ordered ... I think where I've gone wrong is when I dropped down to the smaller chainring. This has taken the chainline 5mm or so closer to the frame and closer to trouble! ... Although having said that if I had secured my piece of hose correctly then it would be fine .... Now I'm looking for a bleeding kit and some of that blue stuff. Edited November 7, 201114 yr by kitchenman

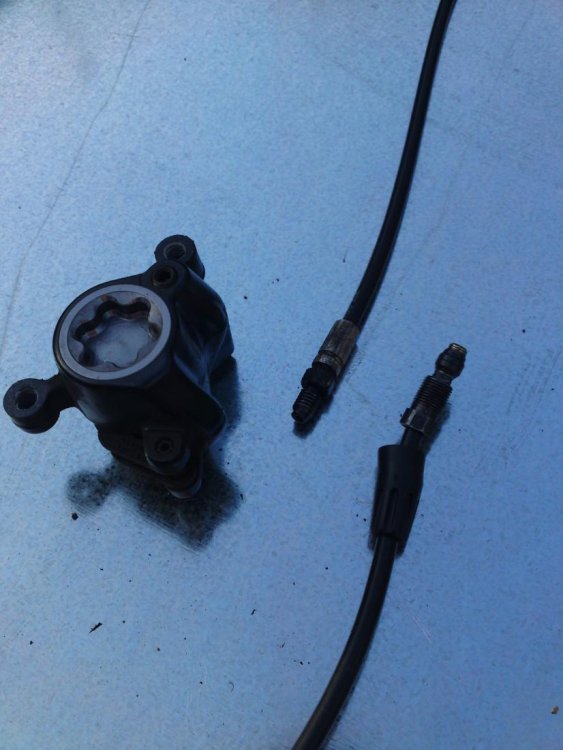

November 11, 201114 yr Author Got my cable. Could use some advise on what to do. Perhaps some step by step postings if you have the energy! .. and I'll take pictures of everything I do ... The current status is the damaged cable is still connected probably with some fluid in the system. Here are the cable ends: [ATTACH]2905.vB[/ATTACH] How do I know that these endings are ok for my Magura brakes?

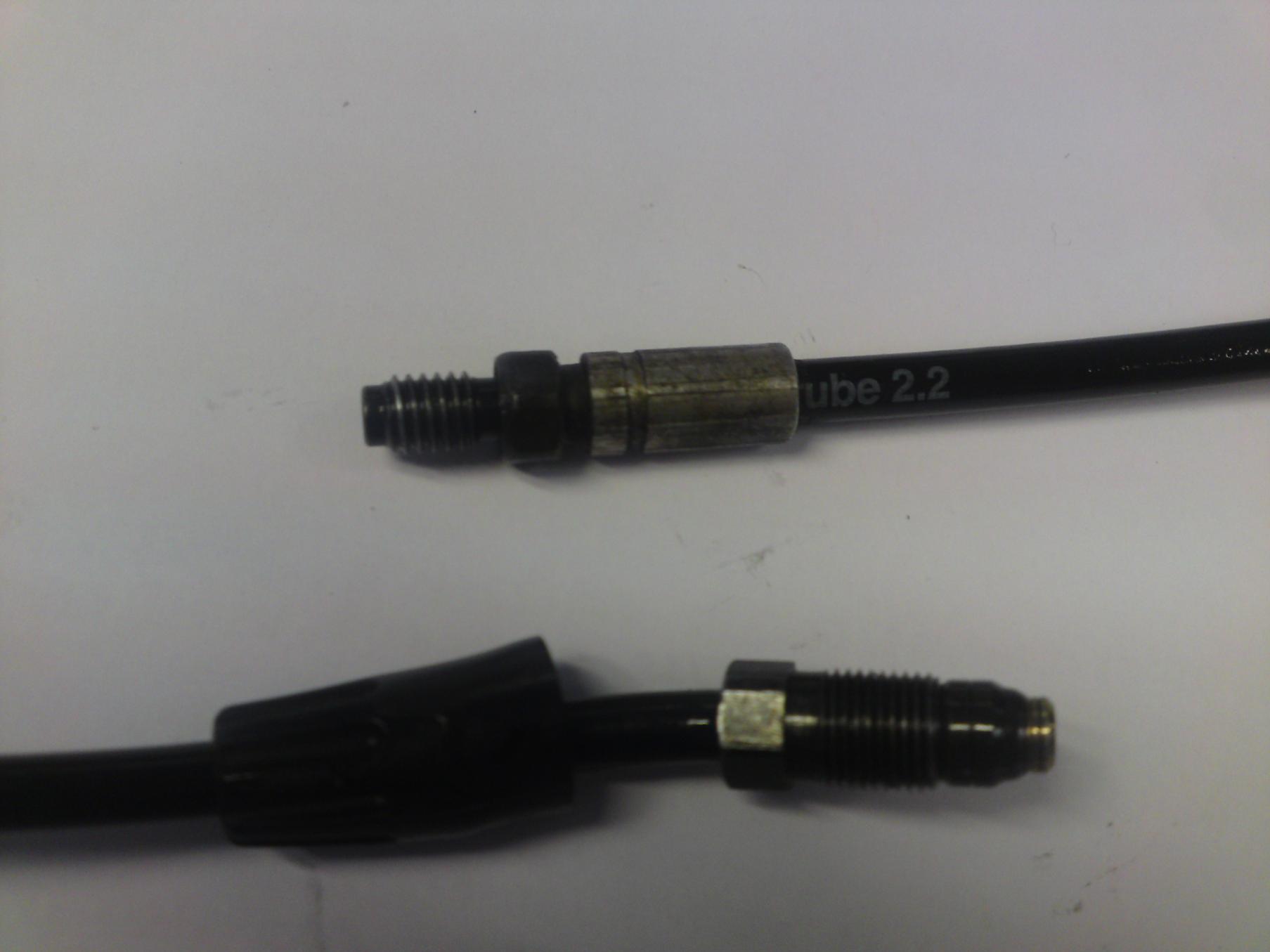

November 12, 201114 yr Author Got my cable ... Umm.. Just been reading this article on bikeradar: Workshop: How To Change A Hydraulic Disc Brake Hose - BikeRadar I need to change the endings or get a cable with the current endings that look like this: [ATTACH]2911.vB[/ATTACH] Can I divorce the endings from the cables or is this not recommended? Edited November 12, 201114 yr by kitchenman
November 12, 201114 yr Author Umm.. Just been reading this article on bikeradar: Can I divorce the endings from the cables or is this not recommended? Here is my cable: [ATTACH]2912.vB[/ATTACH] Question remains: can I get the connectors off the old and new cables and make up my new cable? .....

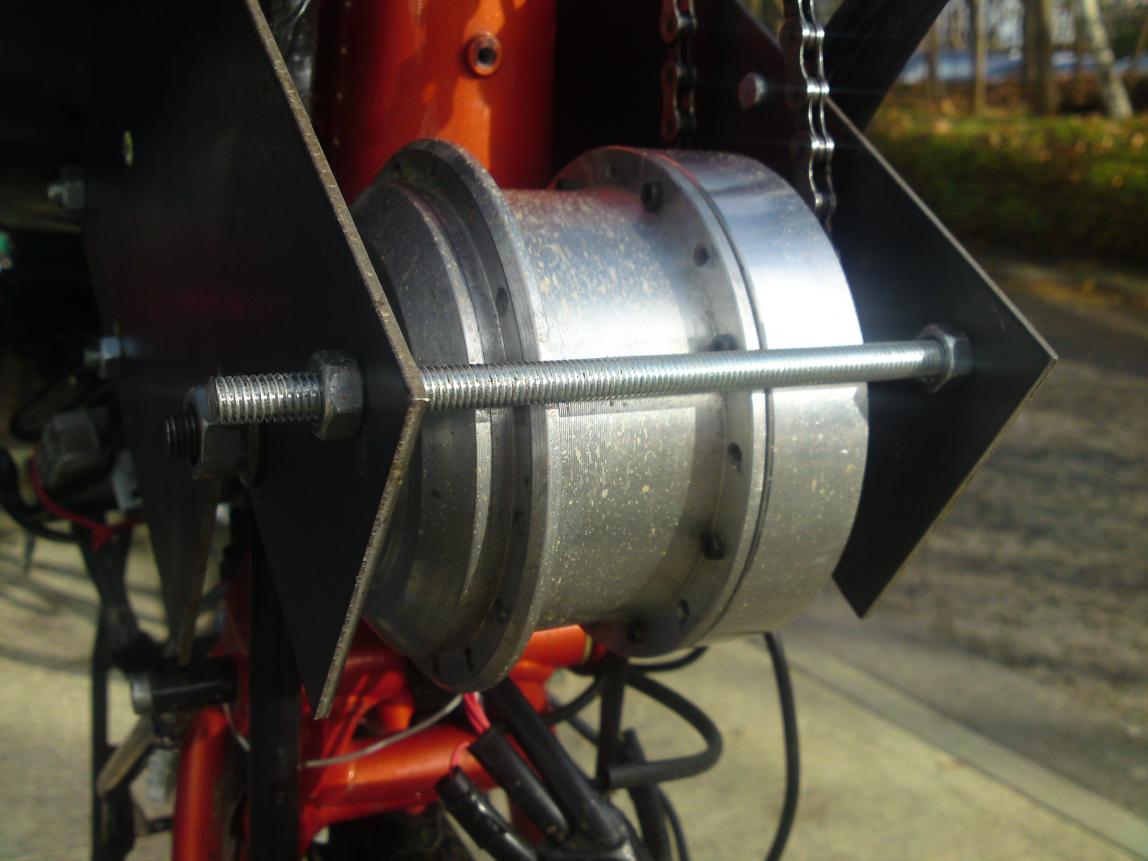

November 18, 201114 yr Author Added a fourth threaded bar as my 3mm plates were still not as solid as I would like! ... [ATTACH]2918.vB[/ATTACH]
November 18, 201114 yr Hi Alan if you type the model of your brake into the searchbox on this page it should come up with the info you require: Search: MAGURA - The Passion People! With regard to re-using the hose ends, If you can remove them from the old hose without them getting damaged, and the new hose you have is a match with the old one for internal and external diameter, and material the hose is made of is the same it should work fine
November 18, 201114 yr Author thanks oigoi. Cycle Kingdom in Fleet is quite close and can make a cable up for me for £15.00 and could do the complete job for about £30.00 depending on the state of the pads .. might give me a bit off if I part exchange the other cable ..
November 22, 201114 yr hi, if somebody searching a winterjob, check this offer: eBay: Neue und gebrauchte Elektronikartikel, Autos, Kleidung, Sammlerst it shows a near by complete chaindrivesystem with a bafang swxk(hall-version - 190rpm) with controller, speedlimiter, crankfreewheel, Software and setup-wire for the controller and the motor have a turned clutchsystem inside so that you have the sprocket(velosolo 19th) on the right side. on second foto you can see how it can look when it is ready build. regards frank Edited November 22, 201114 yr by mechaniker
November 25, 201114 yr Author A quick update. Last 4 rides I have been using my 2 batteries. Nothing nor no-one has falling off! ... Broke the hour barrier on the way home tonight which is very pleasing. Stats: 15.49 miles 15.9 mph 28.2 mph 0:58:07 Need to sort out my front brake next and fit my MPs ...

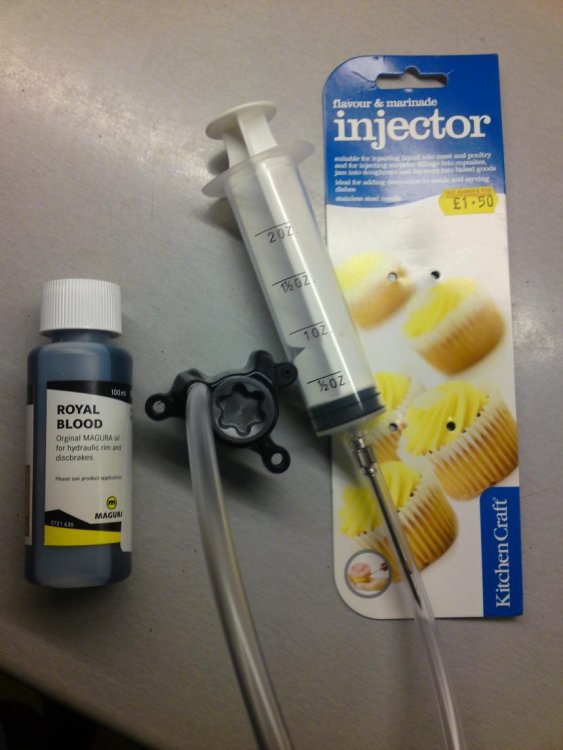

November 26, 201114 yr Author A quick update. Last 4 rides I have been using my 2 batteries. Nothing nor no-one has falling off! ... Broke the hour barrier on the way home tonight which is very pleasing. Stats: 15.49 miles 15.9 mph 28.2 mph 0:58:07 Need to sort out my front brake next and fit my MPs ... Got my cable, some blue blood, a screw a hole in it, some pipe and a food injector! [ATTACH]2941.vB[/ATTACH]
November 27, 201114 yr Author My new cable has come with a ferrule which has not been crimped. Not sure why. I don't have a crimper and will avoid the temptation of using a pliers which was my first thought ... I suppose its because they didn't have the brake lever and the crimping is dependant it. I notice on the photo of my old cable that the ferrule is crimped a little way from the cable end: [ATTACH]2946.vB[/ATTACH] Edited November 27, 201114 yr by kitchenman
November 27, 201114 yr Author When I say ferrule I mean olive! ... and it seems it may not need crimping! ... There is a small thread at the cable end that may screw into the brake lever .. umm or maybe not! ... No. Thats rubbish. I remember when I took the old cable off. There was no unscrewing. Therefore the ferrule or olive needs to be crimped! ... Edited November 27, 201114 yr by kitchenman
November 27, 201114 yr I think if it is an olive it will crimp itself when you tighten the pipe fitting. That is was usually happens with pipe olives in my experience but I haven't worked on maguras before
November 27, 201114 yr Author I think if it is an olive it will crimp itself when you tighten the pipe fitting. That is was usually happens with pipe olives in my experience but I haven't worked on maguras before Ah! Interesting. A self crimping olive. Excellent. Would definitely not thought of that! Thanks oigoi.
November 30, 201114 yr Author Ok.. Sorted! .. Not sure why I was so apprehensive. Its definitely easy with 2 people. Thanks to Richard at work for helping me. No thrills. So spills. I now have full braking power again! ... Only bad news was another chainwheel failure which must have happend this morning and at £10 a pop I really need to sort it.

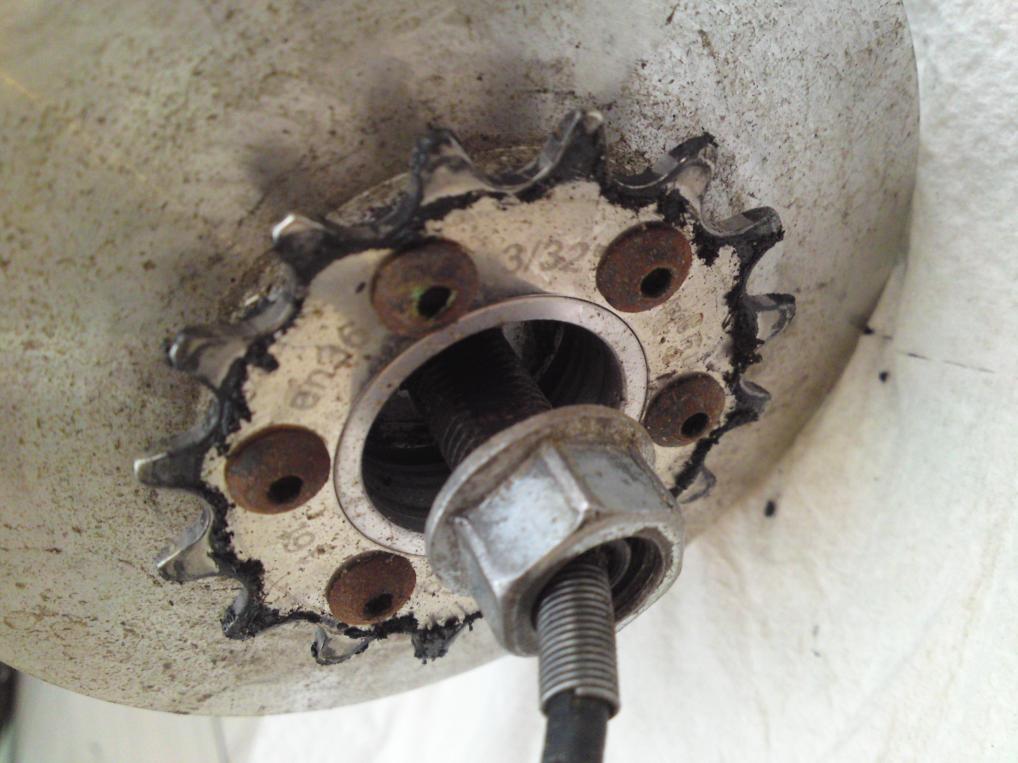

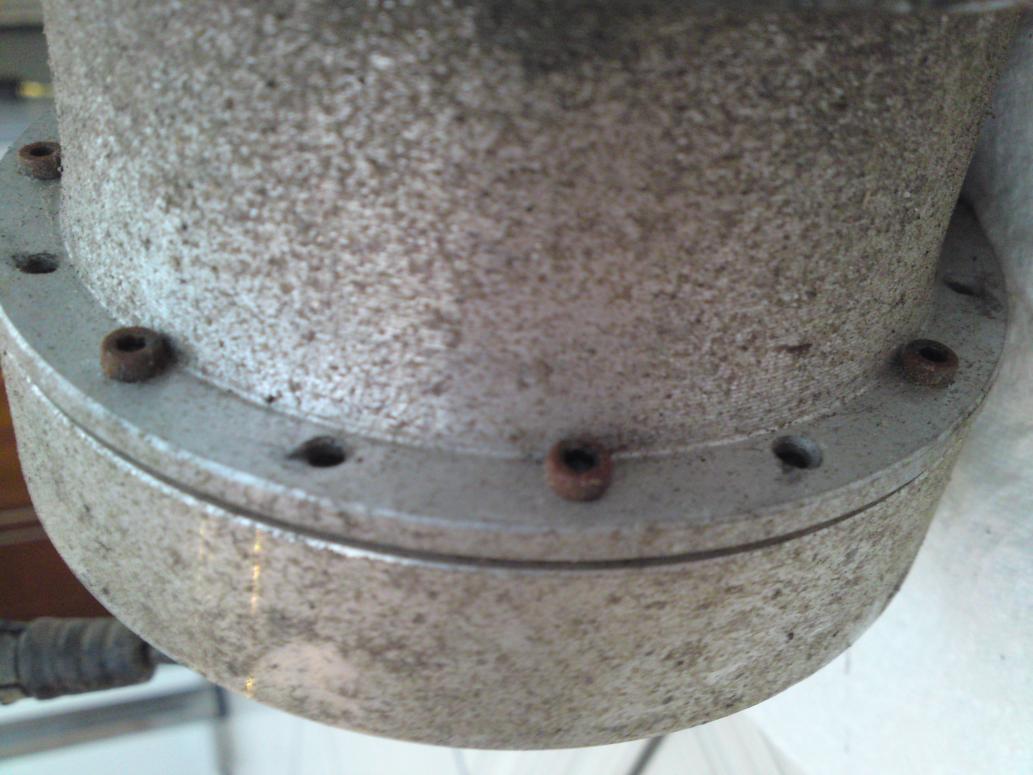

January 29, 201214 yr Author [ATTACH]3117.vB[/ATTACH] [ATTACH]3116.vB[/ATTACH] [ATTACH]3114.vB[/ATTACH] Done 700 miles now. Tongxin looked in need of a clean. After the clean: [ATTACH]3115.vB[/ATTACH] And this is how I did it:
