Finally some progress. Other things have been getting in the way. The main obstacle has been the problem of how to deal with the torque reaction from the motor on a full-suspension bike, so here's how I did it, which can easily be copied by any of you lot. All you need is some 2.5mm steel plate/strip of any metal that has similar stiffness, then a drill and a file/angle grinder to shape it.



There isn't quite a straight line from the fixing point on the motor's anti-rotation plate, so you need to file or grind a slight scallop in one edge.



The main problem was to find a secure anchor point for it. I wasn't happy that a normal P-bracket would be secure enough, nor a plastic printed part to be strong enough. Then I found these, which were perfect. I can use the back 6mm fixing point to hold a bracket for the musguard. It's OK as it is, but a bracket would be better:

https://www.ebay.co.uk/itm/355288298436

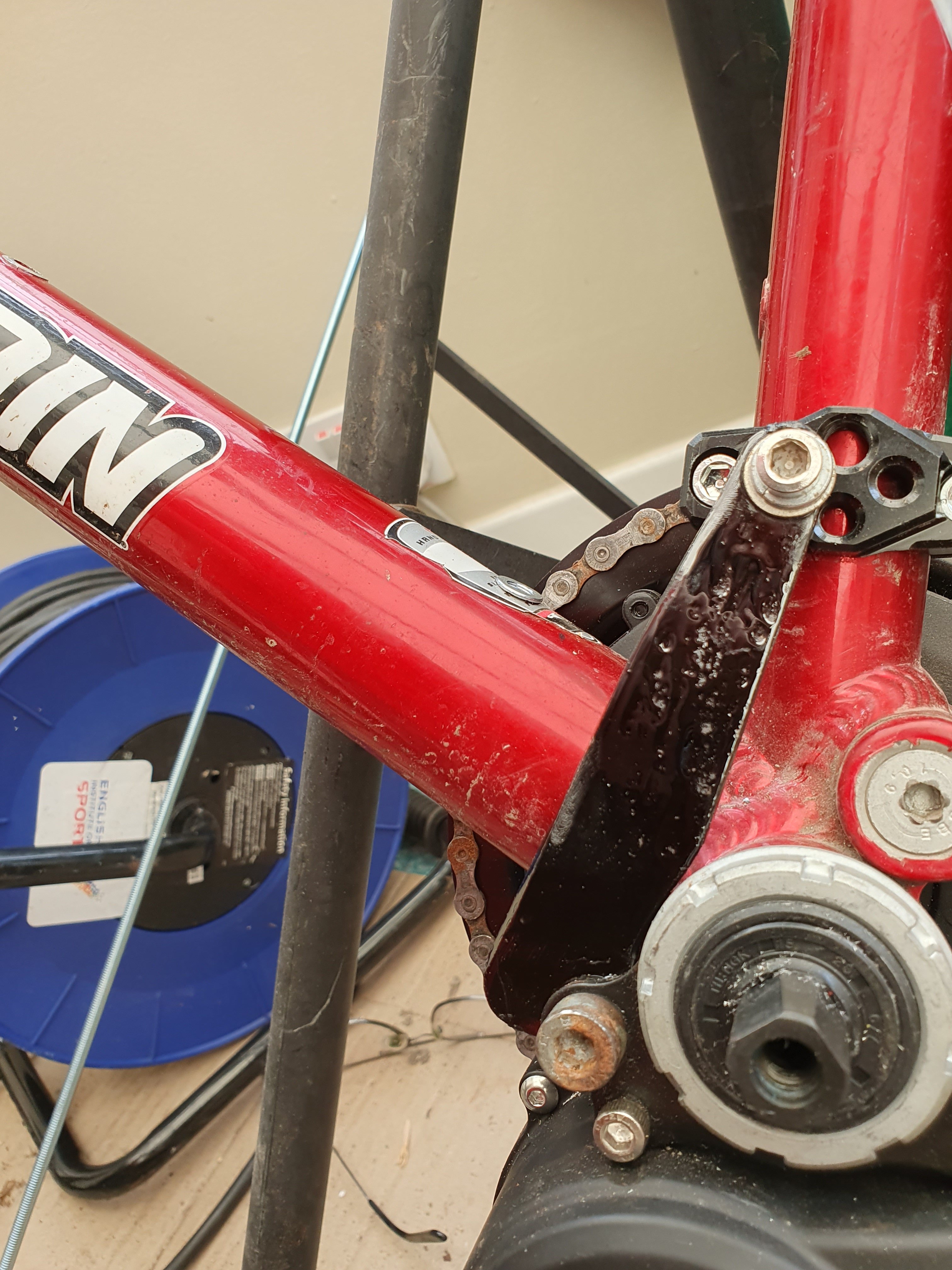

Here is the torque arm now fitted:

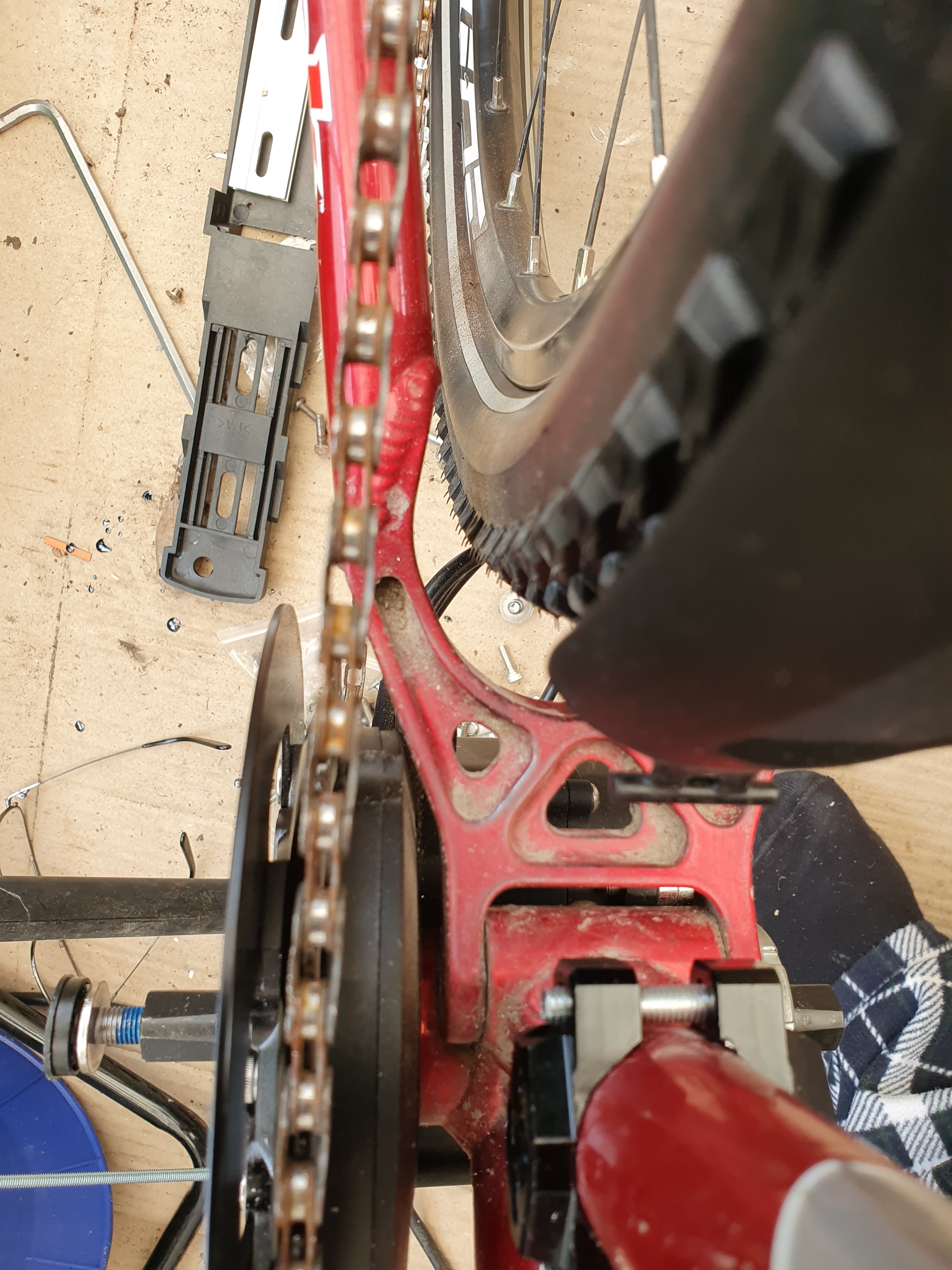

The clearance between the motor and the swinging chainstay is very tight. The lug for the screw interfered at first, but I managed to get just enough rotation to clear it:



Finally some progress. Other things have been getting in the way. The main obstacle has been the problem of how to deal with the torque reaction from the motor on a full-suspension bike, so here's how I did it, which can easily be copied by any of you lot. All you need is some 2.5mm steel plate/strip of any metal that has similar stiffness, then a drill and a file/angle grinder to shape it.



There isn't quite a straight line from the fixing point on the motor's anti-rotation plate, so you need to file or grind a slight scallop in one edge.



Do you think all this effort was necessary? Theoretically TSDZ2B should be OK without extra support.



I was wondering what this extra hole in bracket is for. Now I know

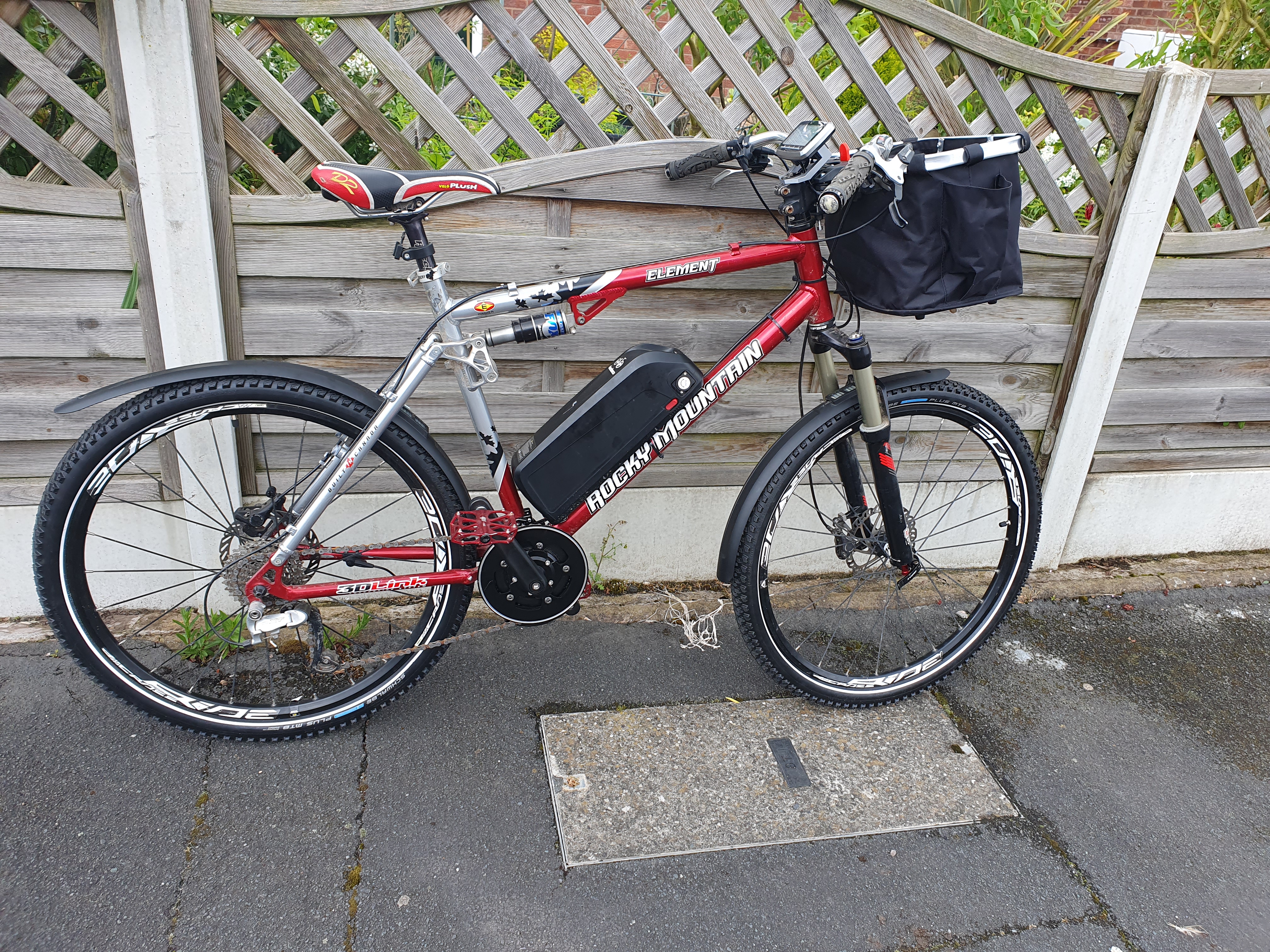

Here's the finished thing. The chain comes off in first gear, the tyres rubbing somewhere, but only when I'm riding it, and the speed sensor doesn't work. I'll soon get those sorted:









Apart from a few adjustments, this is stage one of the project that has three stages. More to come when I make more progress.

Do you think all this effort was necessary? Theoretically TSDZ2B should be OK without extra support.



I was wondering what this extra hole in bracket is for. Now I know

I would say that the friction from the bracket on the BB has no chance of resisting the motor's torque. That's why they ptovide their own anti-rotation arrangement.

I would say that the friction from the bracket on the BB has no chance of resisting the motor's torque. That's why they ptovide their own anti-rotation arrangement.



It is added there as extra measure. TSDZ8 don't have this extra bracket and it is expected to stay in place. One way or another your solution won't hurt for sure.

The solution is a good one. It's rock solid, much more so than the splines at the back of the V shaped bracket that comes with the kit.

It is added there as extra measure. TSDZ8 don't have this extra bracket and it is expected to stay in place. One way or another your solution won't hurt for sure.

The TSDZ8 has a different bracket. I wouldn't rely on it anyway, plus it ruins your BB.

The TSDZ8 has a different bracket. I wouldn't rely on it anyway, plus it ruins your BB.



TSDZ2B and TSDZ8 brackets are almost the same. Just TZDZ8 is a little bigger. I hope it will hold. If not I will send it all back to WOOSH



...or I will make them to send me gizmo like yours.

TSDZ8:

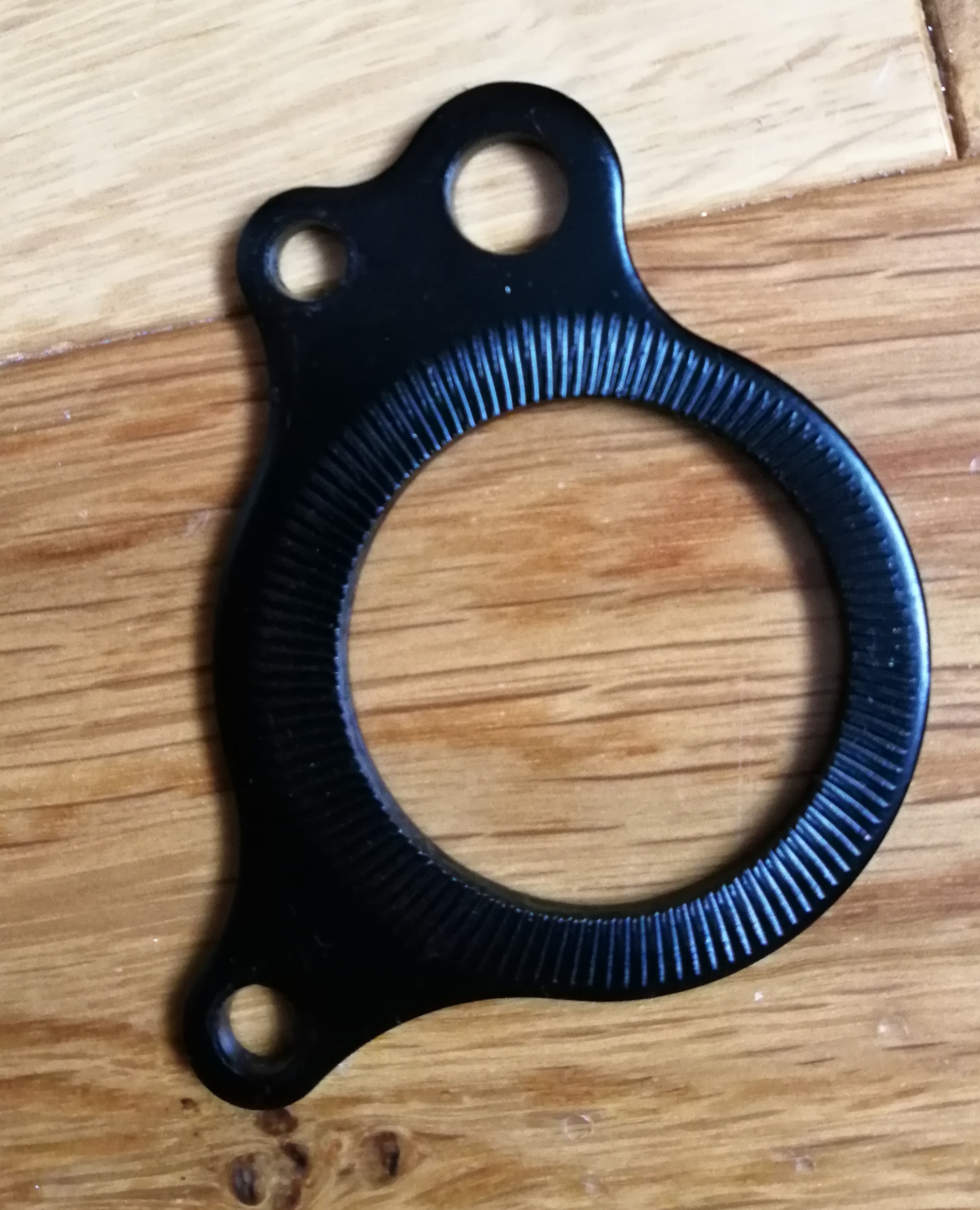

TSDZ2B:

Edited May 14, 20241 yr by Az.

TSDZ8:

[ATTACH type=full" alt="57709]57709[/ATTACH]



TSDZ2B:

[ATTACH type=full" alt="57710]57710[/ATTACH]

Just make sure that your ring-nut is nice and tight!

Just make sure that your ring-nut is nice and tight!



Unfortunately tools provided by Tongsheng are not very impressive. For that I might need my own gizmo. Two bolts and longer handle should do the trick.



Do you think it might be worth to add a drop?



https://www.amazon.co.uk/Loctite-Threadlocker-Prevents-Leakage-Corrosion/dp/B07BP9JPC9/ref=sr_1_1?crid=HEQK8Z444IK&dib=eyJ2IjoiMSJ9.x96lQ6m1OfCIr6W8DXOyWBX03vEQjf5OwljF7UrIAe3AWhhxmgsiO-hm-h4BX6_Le6cu6kwVgEUv7i_I0b2uaqQT2trI2nalHFgSorfw846iyobjE3PPnptGxdXLv4yfeM-ySdlAUlEF-VwVfHvN-A.H_hhdp6yNqRCwAPbML-8YGagTY8-GVxLaPgmX_nUYhE&dib_tag=se&keywords=threadlock&qid=1705178427&s=amazon-devices&sprefix=threadlock%2Camazon-devices%2C197&sr=1-1&th=1

Whack the tool a few times with a lump hammer, which is what I did.

Whack the tool a few times with a lump hammer, which is what I did.



Sounds like a decent torque wrench substitute
