Eventually got the new (Brainpower) controller shoehorned into this very old Giant Twist Express. Fitted a PAS to the crank, as the torque sensor on the rear dropout needs a bit of voltage shifting/remapping to work with the throttle input, and I can't be bothered to do anything until such time as I think the bike's viable. Everything works OK, except that it really struggles to get my 185lbs up the nearest hill. Which is a shame, because the only reason I acquired it is that I'd like to get some cycling in for exercise, having had a triple CABG a couple of years ago, but live in a very hilly area. The batteries are only 24V, but I tested them with a 24v 100w light bulb, and they both seem to have about 80% of the rated 9Ah capacity. The display(S866) shows in excess of 300w at times, although there is a bit of voltage droop(that's normal, isn't it?).

Would it be worth me trying a 36V battery, or would I fry the motor?

II certainly require more than 300w of assistance climbing hills,,



To employ a 36v motor you would also require a controller able to handle a 36v supply you would fry a 24v controller before the motor suffered any ill effects..



afaik excess heat would be your major concern 'overvolting' the motor, so if you just apply caution and check the motor temperature often after you first upgrade (touch the hub and see if its HOT) you should be able to gauge the danger fairly accurately ie if the motor remains cool to the touch ride on.. and if it gets hot at the top of long hill BUt your coasting down the other side for 10 mins after ride on.. But if it fails the 'will it light a match by touch' test half way up 'steep hill #2' - yeah not so good..

II certainly require more than 300w of assistance climbing hills,,



To employ a 36v motor you would also require a controller able to handle a 36v supply you would fry a 24v controller before the motor suffered any ill effects..



afaik excess heat would be your major concern 'overvolting' the motor, so if you just apply caution and check the motor temperature often after you first upgrade (touch the hub and see if its HOT) you should be able to gauge the danger fairly accurately ie if the motor remains cool to the touch ride on.. and if it gets hot at the top of long hill BUt your coasting down the other side for 10 mins after ride on.. But if it fails the 'will it light a match by touch' test half way up 'steep hill #2' - yeah not so good..

Thanks, the controller is rated for 36v.

Eventually got the new (Brainpower) controller shoehorned into this very old Giant Twist Express. Fitted a PAS to the crank, as the torque sensor on the rear dropout needs a bit of voltage shifting/remapping to work with the throttle input, and I can't be bothered to do anything until such time as I think the bike's viable. Everything works OK, except that it really struggles to get my 185lbs up the nearest hill. Which is a shame, because the only reason I acquired it is that I'd like to get some cycling in for exercise, having had a triple CABG a couple of years ago, but live in a very hilly area. The batteries are only 24V, but I tested them with a 24v 100w light bulb, and they both seem to have about 80% of the rated 9Ah capacity. The display(S866) shows in excess of 300w at times, although there is a bit of voltage droop(that's normal, isn't it?).

Would it be worth me trying a 36V battery, or would I fry the motor?

36v would help a lot. All the 24v controllers I tried at 36v worked OK, but I can't guarantee that it won't blow. If you want to be more sure, open the controller and look at the big capacitor in it. If it has a voltage rating over 42v, it should be OK, most are 53v or more. That's the thing that blows when you over-volt a controller, and it only blows if you exceed it's voltage rating that's written on it. If it does blow, there's often a loud bang and lots of pungent smoke, but it's not really anything to worry about other than don't breathe the fumes. The same happens when you connect a battery the wrong way round.



The main problem when you run a 24v controller at 36v is that the battery indicator lights/display will always show full and the controller won't cut-off when your battery is empty. Considering the low cost of the controllers compared with a battery, you might as well replace both with 36v ones. I've done that several times on 24v bikes, and all the owners were very pleased with the results.

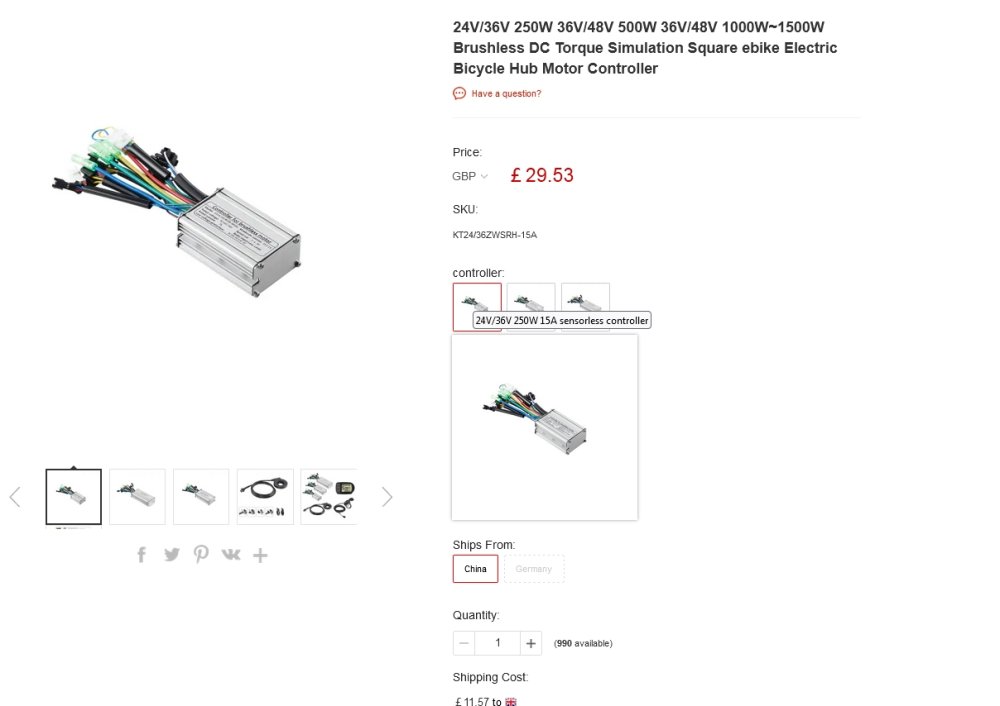

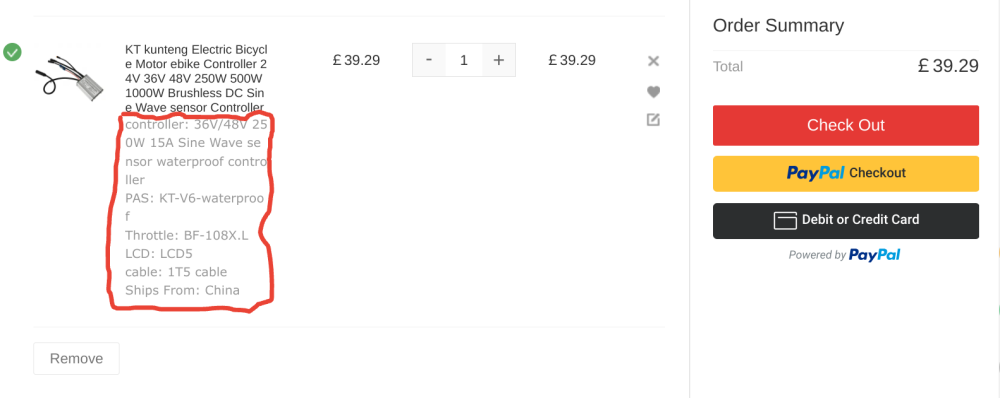

Your motor can handle a lot more power. You can go comfortable up to 17 amps, which would give you all the power you need. I'd recommend a KT controller if you can afford it. they're about £80 with the LCD, so about double the price of a Brainpower, but they work a lot better. The Brainpower at 36v will give full power every time you startup, no matter what assist level you're on, which can be a bit uncomfortable and wasteful. The KT gives a different level of power on each assist level, so you can make it nice and gentle when you want.

Thanks. The controller is 24/36/48V, and has a settable parameter for nominal battery voltage, and another for low battery level, so I'm not really worried about that, I was more worried about the motor.

So now I need to concoct some Heath Robinson way of temporarily applying 36V to see how it works, before throwing more money down the drain...

Thanks. The controller is 24/36/48V, and has a settable parameter for nominal battery voltage, and another for low battery level, so I'm not really worried about that, I was more worried about the motor.

So now I need to concoct some Heath Robinson way of temporarily applying 36V to see how it works, before throwing more money down the drain...

It'll work. No need to test anything.

So after many distractions and delays, I finally road tested my ancient Giant Twist Express, with a new controller (Brainpower with an S866) and a new 36V battery[original battery was 24]from Yose Power. On the flat it seems a little too lively, even on level 1 assist, but I still seem to have some problem up a fairly steep hill. It was fine for about three quarters of the hill, but seemed to lose power at the end. It's not particularly steep or long, and I checked the hub motor at the top for any sign of overheating - it was still stone cold.

I'm a bit confused - I'll give it another go soon, but I wondered if anyone has any pointers.

I seem to remember reading somewhere that some controllers were speed based, rather than power based, and I'm wondering if it might handle the hill better on level 1, rather than level 3? Does that make any sense?

So after many distractions and delays, I finally road tested my ancient Giant Twist Express, with a new controller (Brainpower with an S866) and a new 36V battery[original battery was 24]from Yose Power. On the flat it seems a little too lively, even on level 1 assist, but I still seem to have some problem up a fairly steep hill. It was fine for about three quarters of the hill, but seemed to lose power at the end. It's not particularly steep or long, and I checked the hub motor at the top for any sign of overheating - it was still stone cold.

I'm a bit confused - I'll give it another go soon, but I wondered if anyone has any pointers.

I seem to remember reading somewhere that some controllers were speed based, rather than power based, and I'm wondering if it might handle the hill better on level 1, rather than level 3? Does that make any sense?



1)What is the maximum current supplied by the controller ?



Depending on your weight and how steep the hill then 36v 15 amps or 18 amps should give you a good amount of assist.



Wondering whether a slower(201 max rpm) hub motor would be better for you

Edited November 30, 20241 yr by Peter.Bridge

The controller says 350W.

Anyway, thanks for the reply, but there's no way I'm buying a new hub motor - I've thrown too much cash at this already!

The controller says 350W.

Anyway, thanks for the reply, but there's no way I'm buying a new hub motor - I've thrown too much cash at this already!

Does the controller specify a maximum current ?

Not that I can find.

Not that I can find.

The only things I can think are the controller isn't supplying enough power or the motor is running too slow so is not in its efficient speed range and not outputting enough power.



Shunt mod (search this forum) would be worth a try





https://www.pedelecs.co.uk/forum/threads/shunt-mod-gains.33110/post-467883

So after many distractions and delays, I finally road tested my ancient Giant Twist Express, with a new controller (Brainpower with an S866) and a new 36V battery[original battery was 24]from Yose Power. On the flat it seems a little too lively, even on level 1 assist, but I still seem to have some problem up a fairly steep hill. It was fine for about three quarters of the hill, but seemed to lose power at the end. It's not particularly steep or long, and I checked the hub motor at the top for any sign of overheating - it was still stone cold.

I'm a bit confused - I'll give it another go soon, but I wondered if anyone has any pointers.

I seem to remember reading somewhere that some controllers were speed based, rather than power based, and I'm wondering if it might handle the hill better on level 1, rather than level 3? Does that make any sense?



Being too lively is the complaint from a few users of these speed controllers ( typically they are just poor), the user has no control at all with the power delivery and one reason why some of us always advocate buying KT brand that utilises far better current contriol.



Your controller may climb a little better in L1 or L2 as the max speed is slower .

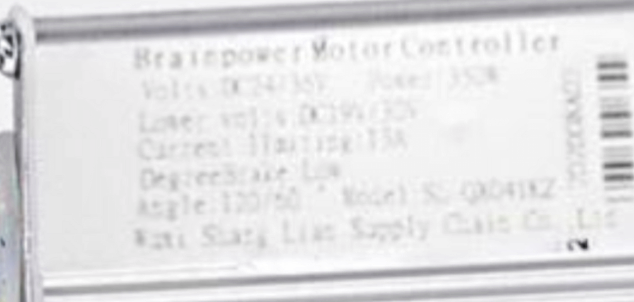

Typically though the Brainpowers do lack power with 13a being the max.



Motor windings (hub rpm speed) may be another reason for the poor climbing ability, a fast wound hub being too inefficient on ascents .

Is the new setup cadence sensor, or still using the original torque sensor?

The controller says 350W.

Anyway, thanks for the reply, but there's no way I'm buying a new hub motor - I've thrown too much cash at this already!



Controllers stating wattage is pure nonsense as it has no meaning , the importance is max current it can deliver.

Edited November 30, 20241 yr by Nealh

Derestrict the speed limit and tell us the max road speed in L3, this will give us an idea to your hub winding RPM.



For hill climbing one needs torque and a low wound rpm hub.

Is the new setup cadence sensor, or still using the original torque sensor?

Using PAS, the rear dropout torque sensor voltage range is not right for the throttle input on the Brainpower. If I could demonstrate to my own satisfaction that the bike will function well, I'll invest some time in voltage translation, as I believe torque sensors feel more natural.

The PAS is working fine, though, as far as I can tell.

Controllers stating wattage is pur nonsense as it has no meaning , the importance is max current it can deliver.

I agree, but I'm a victim of my own cheapskate ways...

Being too lively is the complaint from a few users of these speed controllers ( typically they are just poor), the user has no control at all with the power delivery and one reason why some of us always advocate buying KT brand that utilises far better current contriol.



Your controller may climb a little better in L1 or L2 as the max speed is slower .

Typically though the Brainpowers do lack power with 13a being the max.



Motor windings (hub rpm speed) may be another reason for the poor climbing ability, a fast wound hub being too inefficient on ascents .

I'll give it a try in L1 or L2.



I'm also not sure if the current limit setting does anything at all.

One needs to find out the max speed that assists one in L1 & L2 and therefore also L3 , then ride the ascents without hitting the max speed in each level.

As one reaches near the max speed assist in each level the power/current will bqck off so one will need to try and ride 1 or 2 mph under the max speed to get the best out of the system.

I mean it's not like it's a really steep or long hill. For anyone who has some fancy cycling map app, the bottom of the hill is ///irrigate.absent.tornado and the top is ///landed.stun.caveman



Trouble is, it's winding, potholed and has cars on it. In an ideal universe, I'd find a nice quiet empty gradient, and do some experiments...

I mean it's not like it's a really steep or long hill. For anyone who has some fancy cycling map app, the bottom of the hill is ///irrigate.absent.tornado and the top is ///landed.stun.caveman



Trouble is, it's winding, potholed and has cars on it. In an ideal universe, I'd find a nice quiet empty gradient, and do some experiments...

Just had a look on street view, doesn't look that steep. I think it's worth trying it on Level 1 or 2, please let us know the results

0.5km with average gradient of 4.2% so not really steep. Suggests your controller is way under powered. A KT 17A controller would get you up that at 15 mph withoutany actual effort from you.

0.5km with average gradient of 4.2% so not really steep. Suggests your controller is way under powered. A KT 17A controller would get you up that at 15 mph withoutany actual effort from you.

The thing is, I'm happy to supply some of the effort...

I will try on level 1 and level 2...

But just trying to get my head round how these cheap controllers work, because when I was testing this setup, with the driven front wheel off the floor, it seemed like the power to the hub motor cut off when I braked the front(powered) wheel to a standstill.

And no, I don't have any brake switches fitted(although it's on my list, if I get to the point where I think it's all viable...

The way they work is that they give full power until they reach the speed that has been programmed. If level 1 is set at 10 mph you will get full power until you get to 10mph then it will reduce the power so you can maintain that speed, level 2 might give 12mph, level 3 15mph. If you don't have enough power to reach that speed on an incline then you will quickly get voltage sag. That is why a lower setting may actually help as it isn't trying to reach a speed it can't achieve.
