Is it going to be strong enough for your cargos? I think there's a real danger of the end with the hitch bending into the spokes, or away from the frame - round/box section steel or aluminium is harder to bend, but also trickier to attach to the frame.

There is little or no side way force towing, it is simply a dead pull/push weight effect, otherwise if there was side way pressure one would notice and feel it whilst riding and the back end would be felt moving. The profile needs to be slim for the panniers to sit flat and 6mm thick ali is quite firm it would take a lot to flex/bend the little that hangs down.

Edited June 1, 20223 yr by Nealh

What about when turning? 6mm alumimium is pretty easy to bend stuff - I've got the same thickness and width in steel and I wouldn't use that either. I'd also worry that the steel bands holding the bar to the frame would snap - how strong is that steel? Would a bar on one side (inside), with bolts through either side of the bike frame, through box section on the other side, be stronger? Trouble is, if you overtighten, that could distort your bike frame. Could that first bolt (top left) distort your bike frame?



I'm probably overworrying Nealh.

I found my longer base flexed more so I bolted three extra ali 300mm 25mm sq sections to the under side which has solved the issue, one to the front in the middle of the span and two at equi disatnce apart to the rear.



That sounds like a great idea.

I think you are over thinking and worrying about my bike towing, I have tried flexing the ali bar when it arrived and found it very stiff. Like everything I do and try I shall be keeping an eye on the fixture to see how it goes.

I think it will be safer and stronger then relying on the 9mm QR to take all the strain, as I said the strain is taken by the three securing points so no one will be taking all the strain.

It's push/pull but there's also torque, and I'd further worry that it'll act through the bar onto the frame, which isn't designed for force being applied on those points at those angles- could your frame bend? Like you said, I may be overworrying.

I think it will be safer and stronger then relying on the 9mm QR to take all the strain, as I said the strain is taken by the three securing points so no one will be taking all the strain.



The 9mm QR is made of strong material designed for high loads, and is likely stronger than the bolt on the end of the arm holding on the hitching point? If you're certain that bolt won't break, or the bar won't bend, or bend or damage your bike frame, or the bands won't snap. Sorry Nealh, I worry about metal addons.

247.50 euros for a looong arm



https://shop.planet-used.com/shop/en/carry-freedom-looong-arm-2-0.html

I'm not bothered about the bolt holding the hitch on, it is made from aerospace aluminium used in the UK's space program. I can't tell you how I acquired it.

I'm not bothered about the bolt holding the hitch on, it is made from aerospace aluminium used in the UK's space program. I can't tell you how I acquired it.



I'd only insist you told me, if you did a spacewalk to get it.

247.50 euros for a looong arm



https://shop.planet-used.com/shop/en/carry-freedom-looong-arm-2-0.html



I was thinking along those lines, it would be cheaper to buy the correct box size ali and using a plumbers heavy duty pipe bender to put an offset bend in the tube.

1500mm x 25mm x 25mm x 3mm ali box section £22 inc p&p on ebay.

Edited June 1, 20223 yr by Nealh

The 9mm QR is made of strong material designed for high loads, and is likely stronger than the bolt on the end of the arm holding on the hitching point? If you're certain that bolt won't break, or the bar won't bend, or bend or damage your bike frame, or the bands won't snap. Sorry Nealh, I worry about metal addons.



Buy as we know only 45kg max load.

Buy as we know only 45kg max load.



There'd be warning signs unless something suddenly bends or snaps - paint cracking and/or flaking off the bike frame due to bends/flexing, would be something to watch out for.

This 0.5m extender is abit cheaper at £86 - £95.

This 0.5m extender is abit cheaper at £86 - £95.

[ATTACH type=full" alt="47227]47227[/ATTACH]



That's not too much of an ouch

SJS dispatch fast, but this shop I've never bought from also ships those with elastomer and safety pin included for £110 plus delivery:



https://www.amba-marketing.com/products/view/1217





I'd ring to ask if they definitely have it in stock



https://www.amba-marketing.com/contact

Another heavier solution is to cut the CF arm in two places, to extend both lengths at either side of the elbow, using both inner and out box aluminium or steel tubing, so that the CF tubing fits inside one slightly box section, and is reinforced by another slighter smaller smaller box section within the CF box section - cut to length, drilled and bolted (using bolts from the UK space progamme's top secret Mars mission currently under construction in orbit, which you acquired during your spacewalk ) through three box sections securely at four points (at least). Depending on the weight of the extra metal, carrying capacity would be reduced by a kg or three+. It'd be tough to get measurements right, so that the trailer follows along centrally and as straight as it does now.



On the other hand, you might regret not simply buying a longer CF arm...

Edited June 2, 20223 yr by guerney

I was thinking along those lines, it would be cheaper to buy the correct box size ali and using a plumbers heavy duty pipe bender to put an offset bend in the tube.

1500mm x 25mm x 25mm x 3mm ali box section £22 inc p&p on ebay.

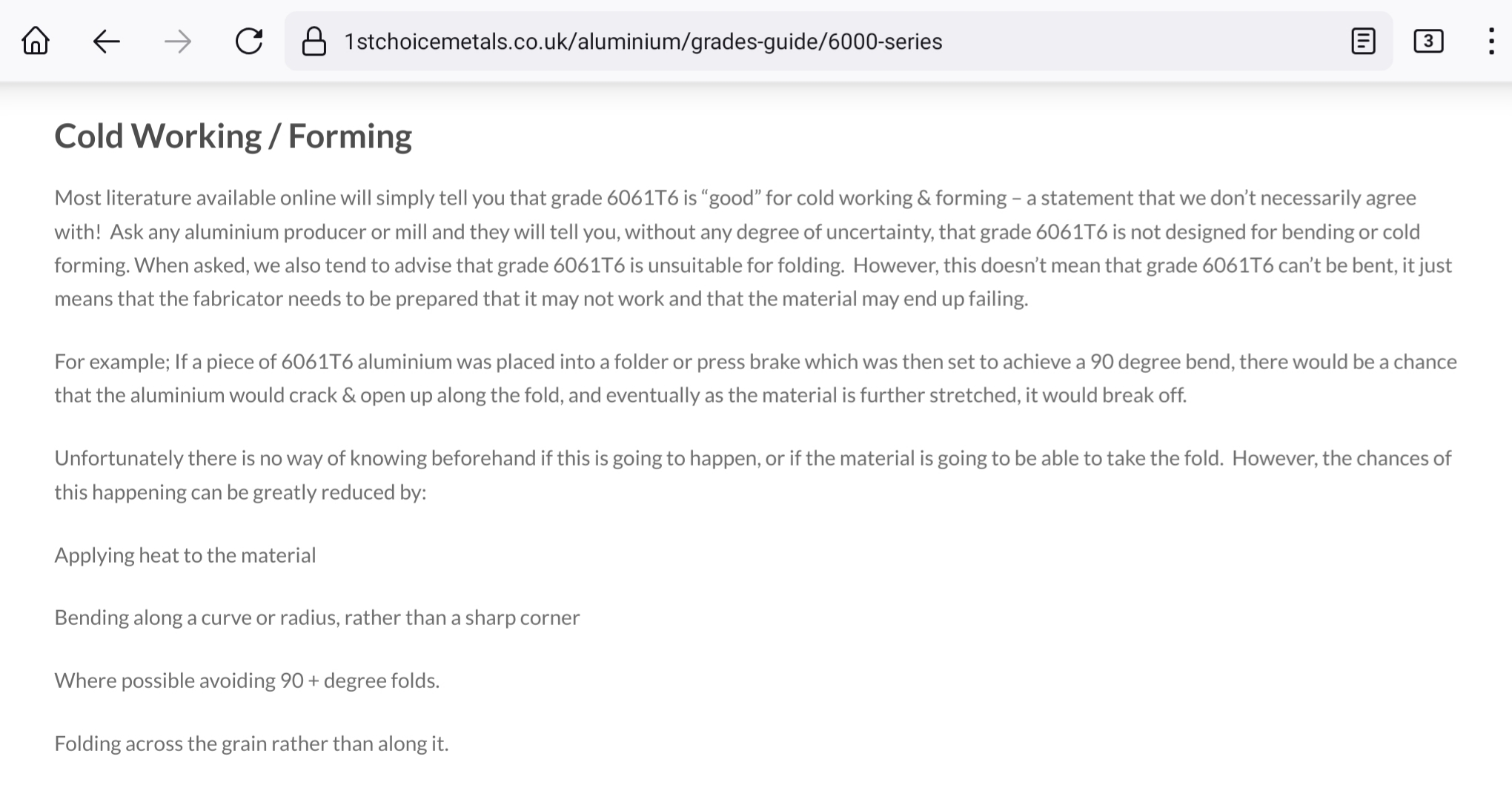

Presumably the alloy they use is stronger? Don't know much about CF's "aluminium 6061T6" - so maybe if you were to try the above, perhaps use a slightly thicker and stronger purer aluminium box section, to match 6061T6's strength and stiffness? Doesn't sound like an easy bending operation - copper is much softer and the pipes which plumber's bending tools are usually used for, are comparitively narrow. You might need some sort of machine with more grunt for box section? A trial run would be worth it, if you've got some scrap aluminium box section of similar size lying around. Aluminium might need to be heated while bending, to prevent fatique/cracking? Copper is more ductile than aluminium.

Edited June 2, 20223 yr by guerney



Tricky job, and could leave a weakness in the bend not visible until cracking starts.

Less risk of cracks with steel (looks rusty), although when inserted into aluminium box tube, it'll slowly wear that away...



The other day I realised with my modded trailer and the extra frame work of the long tail ute, I would have an issue connecting the tow arm as well as straining the QR with all the towing weight.

So I put my heath robinson thinking cap on to come up with a solution I think will work by adding a new towing hitch.

400mm of 25mm x 6mm aluminium & 3 x 18mm P clips and 3 x nuts and bolts to sturdily tie the ali bar to the bike frame in three places, the combined tie points should be strong enough to spread the pull load on the bike frame rather then just using the axle alone.



My heath attachment of the bar puts the tow hitch much further back and easier to hook up the trailer. The three P clips giving a good secure anchor to three points on the rear frame.

[ATTACH type=full" alt="DSCF1395.JPG]47222[/ATTACH]



With the panniers fitted most of it is hidden.

[ATTACH type=full" alt="DSCF1398.JPG]47223[/ATTACH]



The rear looking view shows little, also by adding the bar for the hitch attachment I was able to lower the hitch beneath the axle so it is at a height to suit the trailers 20" wheel better. This allow a more level sitting trailer rather then one slightly pitch up at the front.

[ATTACH type=full" alt="DSCF1399.JPG]47224[/ATTACH]



I'd consider covering the plastic collars under those clips with self-amalgamating rubber tape, to stop dirt entering between the collars and the paintwork - over time, small movemnets will move grit, acting as sandpaper wearing away that lovely paintwork.

After seeing [mention=34503]matthewslack[/mention]'s post:



https://www.pedelecs.co.uk/forum/threads/solar-trailer-rides-again.43566/#post-654258



... I've bought a flag



https://www.ebay.co.uk/itm/254706589834?ssPageName=



...but don't want to spend £30 (delivered), which looks well made and a tad overengineered - if it wasn't for just the one bolt.



https://shop.planet-used.com/shop/en/carry-freedom-light-flag-holder.html



... on a Carry Freedom flag and light holder. Time to get my Heath Robinson hat on? I could just tighten a G-clamp onto the platform and attach the flag to that, which will no doubt separate and take out a driver behind me. I'd like to avoid drilling holes into the platform, unless it's for the official CF flag holder.



At times like this, I wish I had a lathe and welding kits. This might hold aluminium rod still enough to drill a hole through for the flagpole?



https://www.amazon.co.uk/Dhouse-Multi-Metal-Drilling-Processing-Woodworking/dp/B095HPQRTN/ref=



I might just get a thick aluminium solid square bar, cut off a square, drill a hole for the flagpole, and tap it from the other side to srew a bolt through (plus washer), from under the trailer platform. Drilling a long straight hole using a handheld drill could be tricky, even through aluminium. If the hold(s) drilled through the platform isn't larger than that/those needed for the CF flag holder, if my home made effort didn't work out, I could use it/them for the CF holder.



Or through a section of round bar for £3.70



https://www.ebay.co.uk/itm/230603989673?hash=



I may forgo the fiddly drilling of a long hole for the flagpole, by simply cutting off three X 3" lenths and binding them together using jubilee clips, thereby forming a hole in the middle, then drill and tap one or two of those lengths, and bolt through fron under the platform.



alternatively, I can cut off some aluminium box section I have lying around, and bolt it to a corner joint:



https://www.ebay.co.uk/itm/254706589834?ssPageName=



...then fill the box section with araldite, pop in the flagpole, and bolt it to the platform when the araldite dries. Or simply drill a couple of holes through a bit of metal plate, and bolt it onto the vertical side of the corner joint to clamp the flagpole in position.

Edited June 4, 20223 yr by guerney

The other day I realised with my modded trailer and the extra frame work of the long tail ute, I would have an issue connecting the tow arm as well as straining the QR with all the towing weight.

So I put my heath robinson thinking cap on to come up with a solution I think will work by adding a new towing hitch.

400mm of 25mm x 6mm aluminium & 3 x 18mm P clips and 3 x nuts and bolts to sturdily tie the ali bar to the bike frame in three places, the combined tie points should be strong enough to spread the pull load on the bike frame rather then just using the axle alone.



My heath attachment of the bar puts the tow hitch much further back and easier to hook up the trailer. The three P clips giving a good secure anchor to three points on the rear frame.

[ATTACH type=full" alt="DSCF1395.JPG]47222[/ATTACH]



With the panniers fitted most of it is hidden.

[ATTACH type=full" alt="DSCF1398.JPG]47223[/ATTACH]



The rear looking view shows little, also by adding the bar for the hitch attachment I was able to lower the hitch beneath the axle so it is at a height to suit the trailers 20" wheel better. This allow a more level sitting trailer rather then one slightly pitch up at the front.

[ATTACH type=full" alt="DSCF1399.JPG]47224[/ATTACH]



This solution I fear, will cause your bike (at the very least paintwork) problems. And it's nice paintwork, at the mo.

Edited June 13, 20223 yr by guerney

I have used your tip and placed a wrap of amalgam tape to the frame first then the P clip over it, also I went with your other tip and have insatlled a new rectangular hollow section bar with a 30mm x 12mm section.

I have used your tip and placed a wrap of amalgam tape to the frame first then the P clip over it, also I went with your other tip and have insatlled a new rectangular hollow section bar with a 30mm x 12mm section.



I don't know enough about anything to do with bikes to give out tips Nealh - I just try to think about what might or might not happen based on my small knowledge gleaned largely from Metalwork and Design Technology "O" levels at school, which needless to say was a very long time ago. It's all b*llocks you're best advised to filter. Hope it all works out well.
